VIPER38LE - STMicroelectronics

Description: AC/DC Converters VIPerPlus family: Peak power fixed frequency high voltage converter

Download VIPER38LE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

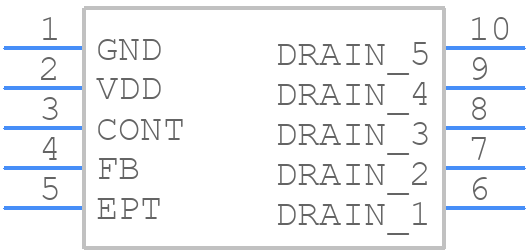

VIPER38LE - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VIPER38LE - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - VIPER38LE
click to zoom
3D Models
VIPER38LE - STMicroelectronics - 3D model - Dual-In-Line Packages - VIPER38LE
click to zoom

VIPER38LE Details

  • Manufacturer Part Number:

    VIPER38LE

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SDIP-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    23.5 V

  • Input Voltage-Min:

    8.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PDIP-T10

  • JESD-609 Code:

    e3

  • Length:

    9.59 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP10,.3,69

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    2.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    66 kHz

  • Terminal Finish:

    Tin (Sn) - immersion

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.77 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

VIPER38LE Frequently Asked Questions (FAQs)

  • A good PCB layout for VIPER38LE involves keeping the high-frequency switching nodes (e.g., drain-source voltage) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas to reduce EMI.
  • To ensure reliable startup and shutdown, ensure that the input voltage rises and falls slowly (e.g., using a soft-start circuit), and add a delay between startup and shutdown to prevent oscillations.
  • The maximum allowed voltage on the VCC pin is 18V, but it's recommended to keep it below 15V to ensure reliable operation and prevent overheating.
  • Choose a transformer with a suitable turns ratio, core material, and wire size to ensure efficient energy transfer and minimize losses. Consult the datasheet and application notes for guidance.
  • Ensure good airflow, use a heat sink if necessary, and keep the device away from other heat sources. Monitor the junction temperature (TJ) and adjust the design accordingly to prevent overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
