VIPER53SP-E - STMicroelectronics

Description: Fixed frequency off line converter

Download VIPER53SP-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

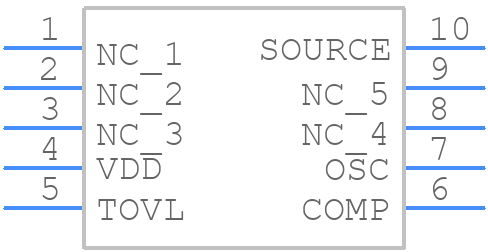

VIPER53SP-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VIPER53SP-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO-10*stm
click to zoom
3D Models
VIPER53SP-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSO-10*stm
click to zoom

VIPER53SP-E Details

  • Manufacturer Part Number:

    VIPER53SP-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    POWER, SOP-8

  • Pin Count:

    10

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Nom:

    13 V

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    9.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Output Current-Max:

    2.3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP10,.55FL

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.65 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    300 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

VIPER53SP-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The transformer selection depends on the input voltage, output voltage, and power rating. STMicroelectronics provides a transformer selection guide in the application note AN4979, which includes a list of recommended transformers and their characteristics.
  • The VIPER53SP-E has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow the thermal design guidelines in the datasheet and application note AN4979 to prevent overheating and ensure reliability.
  • The VIPER53SP-E has a built-in OVP feature, but it can be adjusted or customized using external components. Refer to the application note AN4979 for guidelines on implementing OVP and undervoltage protection (UVP) with the VIPER53SP-E.
  • The VIPER53SP-E is designed to meet EMI and EMC standards, but proper PCB layout, component selection, and shielding are still essential. Follow the guidelines in the application note AN4979 and the datasheet to ensure compliance with EMI and EMC regulations.
