VLCF5020T-4R7N1R7-1 - TDK

Description: TDK VLC5020 Series Shielded Wire-wound SMD Inductor 4.7 μH ±30% 2.09A Idc

Download VLCF5020T-4R7N1R7-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VLCF5020T-4R7N1R7-1 - TDK - PCB symbol
click to zoom
PCB Footprints

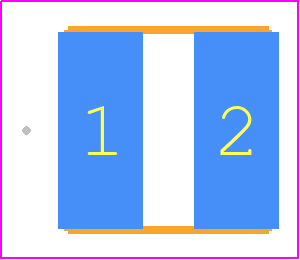

VLCF5020T-4R7N1R7-1 - TDK PCB footprint - Other - Other - VLCF5020
click to zoom
3D Models
VLCF5020T-4R7N1R7-1 - TDK - 3D model - Other - VLCF5020
click to zoom

VLCF5020T-4R7N1R7-1 Details

  • Manufacturer Part Number:

    VLCF5020T-4R7N1R7-1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.4

  • Case/Size Code:

    2020

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.122 Ω

  • Inductance-Nom (L):

    4.7 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    2 mm

  • Package Length:

    5 mm

  • Package Style:

    SMT

  • Package Width:

    5 mm

  • Packing Method:

    TR, 7 Inch

  • Rated Current-Max:

    2.09 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    ONE SURFACE

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    30%

VLCF5020T-4R7N1R7-1 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the VLCF5020T-4R7N1R7-1 can be found in the TDK Corporation's application note or in the IPC-7351 standard. It is essential to follow the recommended land pattern to ensure reliable soldering and to prevent defects.
  • During reflow soldering, it is essential to follow the recommended temperature profile to prevent damage to the component. The maximum temperature rating for the VLCF5020T-4R7N1R7-1 is 260°C. It is also recommended to use a nitrogen atmosphere to prevent oxidation.
  • The maximum operating temperature range for the VLCF5020T-4R7N1R7-1 is -55°C to 125°C. Operating the component outside this range may affect its performance and reliability.
  • To prevent moisture absorption, it is recommended to store the VLCF5020T-4R7N1R7-1 in a dry, cool place, away from direct sunlight. The component should be stored in its original packaging or in a sealed bag with desiccant to maintain a low humidity environment.
  • The recommended soldering method for the VLCF5020T-4R7N1R7-1 is reflow soldering. Wave soldering is not recommended as it may cause damage to the component.
