VN330SP-32-E - STMicroelectronics

Description: IC PWR DRIVER N-CHAN 1:1 PWRSO10

Download VN330SP-32-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

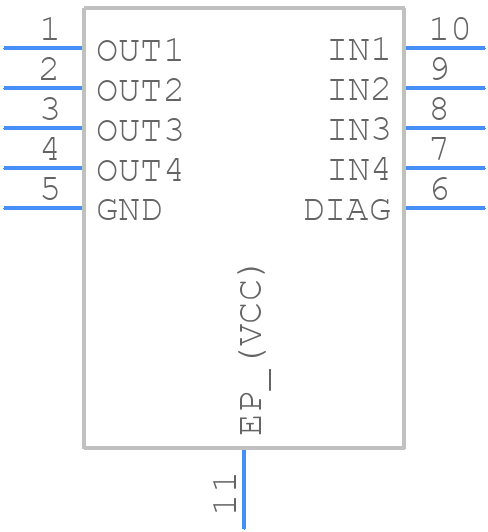

VN330SP-32-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN330SP-32-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO-10_4
click to zoom
3D Models
VN330SP-32-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSO-10_4
click to zoom

VN330SP-32-E Details

  • Manufacturer Part Number:

    VN330SP-32-E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, SO-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; UNDER VOLTAGE

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    9.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    10

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP10,.55FL

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.65 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    30 µs

  • Turn-on Time:

    40 µs

  • Width:

    7.5 mm

VN330SP-32-E Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the VN330SP-32-E is -40°C to 125°C.
  • To configure the VN330SP-32-E for low-power mode, set the EN pin low and ensure the VCC pin is below 1.8V. Additionally, disable any unused features and reduce the clock frequency to minimize power consumption.
  • To minimize EMI and noise, it is recommended to follow a 4-layer PCB stackup with a solid ground plane, keep sensitive analog signals away from digital signals, and use a decoupling capacitor (e.g., 100nF) between VCC and GND near the VN330SP-32-E.
  • Yes, the VN330SP-32-E can operate with a 3.3V power supply, but ensure that the VCC pin is within the recommended operating range of 1.65V to 3.6V. Additionally, be aware that the device's performance and power consumption may vary at 3.3V compared to the recommended 1.8V.
  • To troubleshoot issues with the VN330SP-32-E's SPI interface, verify that the clock frequency is within the recommended range (up to 10MHz), ensure correct pin connections and signal levels, and check for bus contention or conflicts with other devices on the SPI bus.
