VN330SPTR-E - STMicroelectronics

Description: Quad high-side smart power solid-state relay

Download VN330SPTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

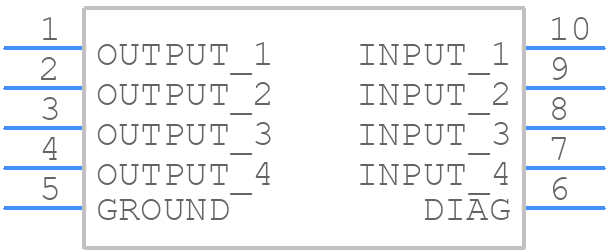

Symbol
VN330SPTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN330SPTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - VN330SPTR-E
click to zoom
3D Models
VN330SPTR-E - STMicroelectronics - 3D model - Small Outline Packages - VN330SPTR-E
click to zoom

VN330SPTR-E Details

  • Manufacturer Part Number:

    VN330SPTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-10

  • Pin Count:

    10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Built-in Protections:

    OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    9.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP10,.55FL

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.75 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    40 µs

  • Turn-on Time:

    60 µs

  • Width:

    7.5 mm

VN330SPTR-E Frequently Asked Questions (FAQs)

  • A good PCB layout for VN330SPTR-E involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the power source. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Proper cooling of VN330SPTR-E involves providing a heat sink with a thermal resistance of less than 10°C/W, ensuring good airflow, and keeping the device away from other heat sources. A thermal interface material can also be used to improve heat transfer.
  • When handling VN330SPTR-E, precautions include using an anti-static wrist strap or mat, handling the device by the body and not the leads, and avoiding bending or flexing the leads. It's also important to store the device in an anti-static bag or wrap.
  • To troubleshoot issues with VN330SPTR-E, start by checking the power supply voltage, current, and temperature. Verify that the device is properly soldered and that the PCB layout is correct. Use a thermal camera or thermometer to check for hotspots, and consult the datasheet and application notes for guidance.
  • When designing a power supply using VN330SPTR-E, key considerations include selecting the right input and output capacitors, choosing the correct inductor value, and ensuring the device is properly cooled. It's also important to consider the device's current rating, voltage rating, and thermal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN330SPTR-E Overview

Use the download button to access the VN330SPTR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VN330, or try a keyword search, such as Peripheral Drivers
