VN5E006ASP-E - STMicroelectronics

Description: Single channel high-side driver with analog current sense for automotive applications , 4.5V ~ 28V , -40°C ~ 150°C (TJ)

Download VN5E006ASP-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

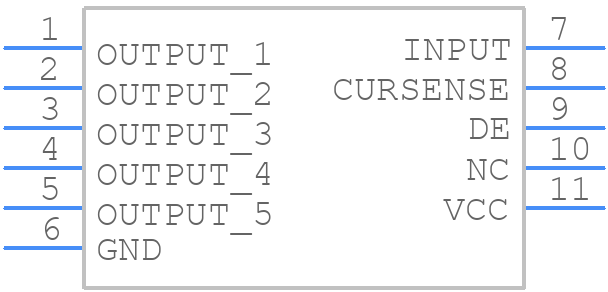

Symbol
VN5E006ASP-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN5E006ASP-E - STMicroelectronics PCB footprint - Other - Other - PowerSO-10_2026-1.4
click to zoom

VN5E006ASP-E Details

  • Manufacturer Part Number:

    VN5E006ASP-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G10

  • Length:

    9.4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    90 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP10,.55FL

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.75 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.5 mm

VN5E006ASP-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4899, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor values depend on the specific application and operating conditions. A general guideline is to use capacitors with a value between 1uF to 10uF, with a voltage rating of at least 50V. The datasheet provides a formula to calculate the minimum input capacitance required. Additionally, STMicroelectronics recommends using X7R or X5R dielectric capacitors for optimal performance.
  • Although the datasheet specifies a maximum voltage of 40V on the VIN pin, it's recommended to limit the voltage to 36V to ensure reliable operation and prevent damage to the device. Exceeding 36V may cause the device to enter an overvoltage protection mode or even lead to permanent damage.
  • The VN5E006ASP-E has a built-in overcurrent protection feature, but it's recommended to add an external current sense resistor (RSENSE) to detect overcurrent conditions. The value of RSENSE depends on the specific application and the desired overcurrent threshold. STMicroelectronics provides guidelines for selecting RSENSE in the application note AN4899.
  • The thermal resistance of the VN5E006ASP-E package is not explicitly stated in the datasheet. However, according to STMicroelectronics' thermal modeling, the junction-to-ambient thermal resistance (RthJA) is approximately 40°C/W. This value can be used to estimate the device's temperature rise under different operating conditions.
