VN5E025MJ-E - STMicroelectronics

Description: Single channel high side driver with analog current sense for automotive applications

Download VN5E025MJ-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

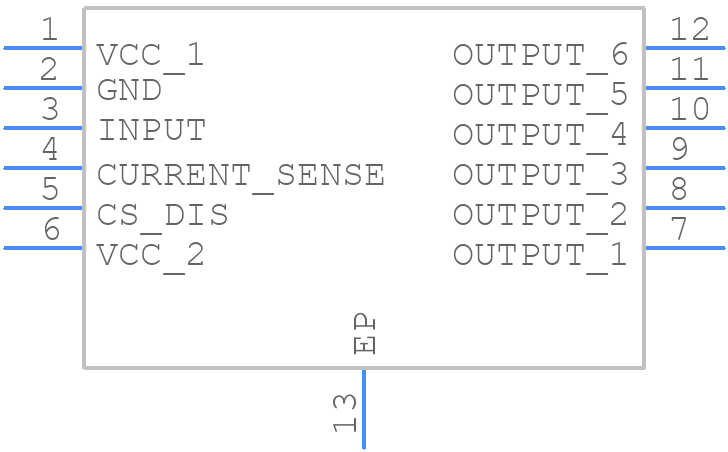

Symbol
VN5E025MJ-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN5E025MJ-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-12 -1
click to zoom

VN5E025MJ-E Details

  • Manufacturer Part Number:

    VN5E025MJ-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

VN5E025MJ-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4899, which includes guidelines for component placement, thermal management, and routing to minimize electromagnetic interference (EMI) and ensure reliable operation.
  • The input capacitor values depend on the specific application and operating conditions. A general guideline is to use ceramic capacitors with a value between 1 μF to 10 μF, and a voltage rating of at least 25 V. The datasheet provides more information on input capacitor selection, and STMicroelectronics also offers a capacitor selection tool on their website.
  • The enable pin (EN) is a digital input and should not exceed the maximum voltage rating of 6 V. Applying a voltage higher than 6 V can damage the device. It's recommended to use a voltage limiter or a voltage divider to ensure the enable pin voltage remains within the specified range.
  • Proper thermal management is crucial for the VN5E025MJ-E. Ensure good thermal conductivity by using a heat sink or a thermal pad, and follow the recommended PCB layout guidelines. The device's thermal resistance (RthJA) is specified in the datasheet, and STMicroelectronics provides thermal management guidelines in their application notes.
  • The VN5E025MJ-E is designed to operate at frequencies up to 100 kHz. However, the optimal operating frequency range depends on the specific application and load conditions. It's recommended to consult the datasheet and application notes for more information on frequency selection and optimization.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN5E025MJ-E Overview

Use the download button to access the VN5E025MJ-E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like VN5E0, or try a keyword search, such as Peripheral Drivers
