VN5E025MJTR-E - STMicroelectronics

Description: Single channel high side driver with analog current sense for automotive applications

Download VN5E025MJTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

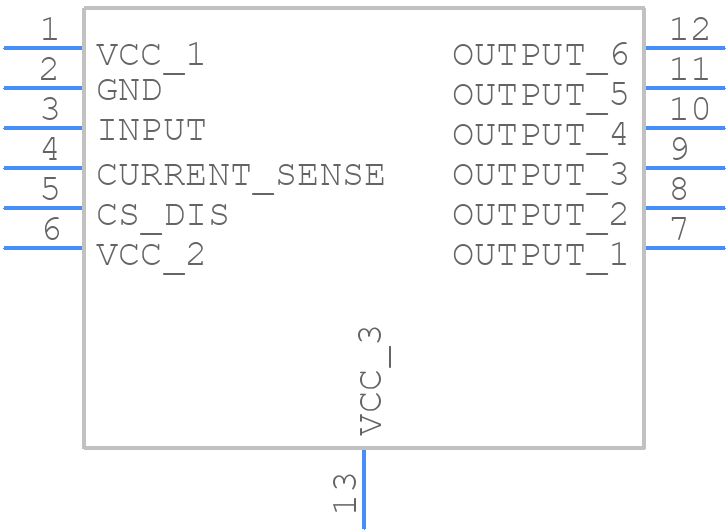

VN5E025MJTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN5E025MJTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-12 height 1.62_2022
click to zoom
3D Models
VN5E025MJTR-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-12 height 1.62_2022
click to zoom

VN5E025MJTR-E Details

  • Manufacturer Part Number:

    VN5E025MJTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

VN5E025MJTR-E Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the VN5E025MJTR-E is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal management guidelines, such as using a heat sink, and ensuring good airflow around the device.
  • A recommended PCB layout for minimizing EMI includes using a solid ground plane, keeping signal traces short and away from the device, and using shielding or filtering if necessary.
  • The VN5E025MJTR-E is rated for a maximum voltage of 28V, so it's essential to ensure that the application voltage does not exceed this rating to prevent damage to the device.
  • To troubleshoot issues, start by reviewing the datasheet and application notes, then check the PCB layout, component values, and soldering quality. If issues persist, contact STMicroelectronics support or a qualified engineer for assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN5E025MJTR-E Overview

Use the download button to access the VN5E025MJTR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VN5E0, or try a keyword search, such as Peripheral Drivers
