- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for VN5MB02-E
- Part Number VN5MB02-E
- Manufacturer STMicroelectronics
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO-16N package information
- Released Date Sep 9, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
VN5MB02-E Details
-
Manufacturer Part Number:
VN5MB02-E
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
SOP-16
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
STMicroelectronics
-
YTEOL:
3
-
Consumer IC Type:
CONSUMER CIRCUIT
VN5MB02-E Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for thermal pad connection, copper pouring, and via placement to ensure optimal thermal performance.
-
The input capacitor selection depends on the input voltage, frequency, and ripple current. A general guideline is to choose a capacitor with a capacitance value between 1-10 μF, a voltage rating higher than the input voltage, and a low ESR (Equivalent Series Resistance). Consult the application note AN4553 for more detailed guidance.
-
The maximum allowed voltage on the enable pin (EN) is 6 V. Exceeding this voltage may damage the device. It's recommended to use a voltage divider or a level shifter if the control signal is higher than 6 V.
-
The VN5MB02-E is rated for operation up to 150°C (TJ). However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and ensure the device operates within the recommended temperature range.
-
Start by verifying the input voltage, enable pin voltage, and output voltage. Check for proper PCB layout, thermal management, and decoupling capacitors. Consult the datasheet and application notes for troubleshooting guidelines and fault diagnosis.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
VN5MB02-E Overview

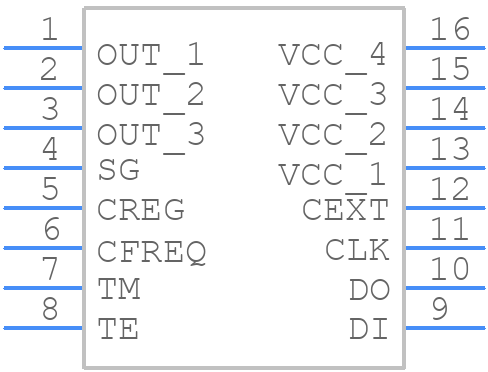

Use the download button to access the VN5MB02-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VN5MB,
or try a keyword search, such as Other Consumer ICs
