VN7016AJEPTR - STMicroelectronics

Description: Power Switch ICs - Power Distribution High-side driver with MultiSense analog feedback for automotive applications

Download VN7016AJEPTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

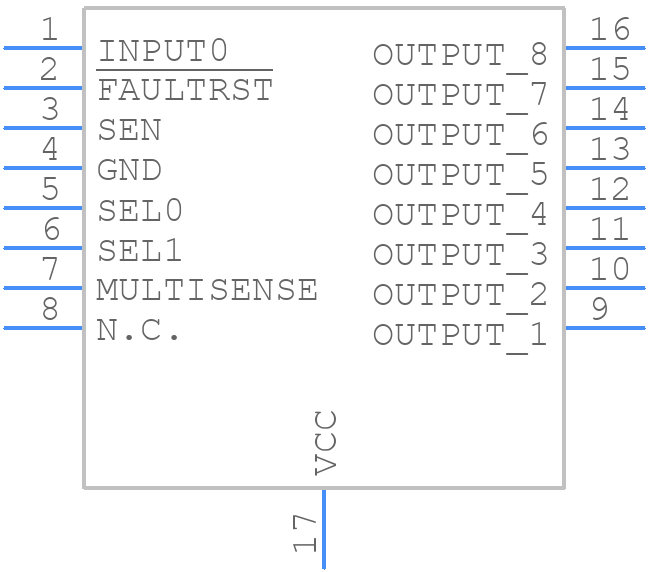

VN7016AJEPTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN7016AJEPTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - sso-16
click to zoom
3D Models
VN7016AJEPTR - STMicroelectronics - 3D model - Small Outline Packages - sso-16
click to zoom

VN7016AJEPTR Details

  • Manufacturer Part Number:

    VN7016AJEPTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

VN7016AJEPTR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer or 4-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • To ensure EMC, use a shielded cable for the bus, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the bus lines.
  • The maximum allowed voltage on the VCC pin is 5.5V, but it's recommended to keep it within 4.5V to 5.5V for optimal performance and reliability.
  • Yes, the VN7016AJEPTR is rated for operation up to 150°C, but the device's performance and reliability may degrade above 125°C. Ensure proper thermal management and consider derating the device for high-temperature applications.
  • Check the bus voltage, signal integrity, and termination. Verify the clock frequency and data transmission rate. Use a logic analyzer or oscilloscope to debug the communication protocol.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN7016AJEPTR Overview

Use the download button to access the VN7016AJEPTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VN701, or try a keyword search, such as Peripheral Drivers
