VN7050ASTR - STMicroelectronics

Description: STMICROELECTRONICS - VN7050ASTR - Power Load Distribution Switch, High Side, Active High, 13V, 1 Output, 30A, 0.05ohm, SOIC-8

Download VN7050ASTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

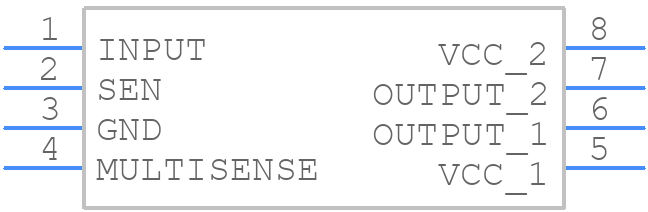

VN7050ASTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN7050ASTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8--ren1
click to zoom
3D Models
VN7050ASTR - STMicroelectronics - 3D model - Small Outline Packages - SO-8--ren1
click to zoom

VN7050ASTR Details

  • Manufacturer Part Number:

    VN7050ASTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

VN7050ASTR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-current paths short and use wide traces for power and ground. Decouple the device with 100nF and 10uF capacitors.
  • Use a stable clock source, ensure proper termination of the SPI bus, and implement error checking and correction mechanisms. Also, ensure the microcontroller and VN7050ASTR are properly synchronized.
  • The maximum current rating is 50A, but it's recommended to derate the current to 30A for continuous operation to ensure reliability and prevent overheating.
  • Use a TVS diode for overvoltage protection and a fuse or PTC resettable fuse for overcurrent protection. Also, implement overcurrent detection and shutdown in your application code.
  • Use a heat sink with a thermal resistance of 10°C/W or lower. Ensure good airflow and keep the device away from heat sources. Monitor the junction temperature and implement thermal shutdown if necessary.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN7050ASTR Overview

Use the download button to access the VN7050ASTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VN705, or try a keyword search, such as Peripheral Drivers
