VN772KP-E - STMicroelectronics

Description: Quad smart power solid state relay for complete H-bridge configurations

Download VN772KP-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

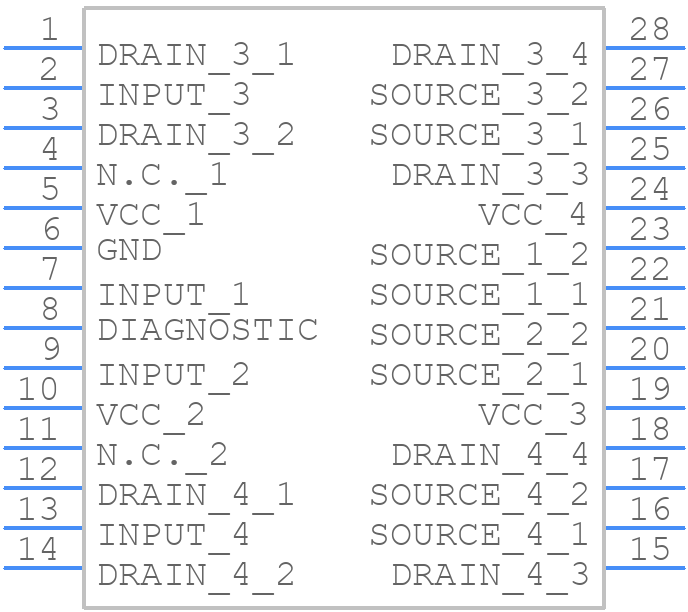

VN772KP-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN772KP-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-28.
click to zoom

VN772KP-E Details

  • Manufacturer Part Number:

    VN772KP-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

VN772KP-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4899, which includes guidelines for thermal pad connection, copper thickness, and thermal vias to ensure optimal heat dissipation.
  • STMicroelectronics provides a component selection guide in the datasheet, which includes recommendations for resistors, capacitors, and inductors. Additionally, the application note AN4899 provides more detailed guidance on component selection and layout considerations.
  • The VN772KP-E has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (Tj) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
  • The VN772KP-E has a built-in overcurrent protection feature, which can be enabled by connecting the OCP pin to a resistor and capacitor network. The application note AN4899 provides a detailed example of an overcurrent protection circuit and calculation guidelines for the required components.
  • The recommended startup sequence for the VN772KP-E is to first apply the input voltage (VIN), followed by the enable signal (EN). This ensures that the device is properly initialized and configured before starting operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN772KP-E Overview

Use the download button to access the VN772KP-E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like VN772, or try a keyword search, such as Motion Control Electronics
