- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for VN820SPTR-E
- Part Number VN820SPTR-E
- Manufacturer STMicroelectronics
- Pin Count 11
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PowerSO-10_1_2022
- Released Date Sep 11, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
VN820SPTR-E Details
-
Manufacturer Part Number:
VN820SPTR-E
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
ROHS COMPLIANT, POWER, SO-10
-
Pin Count:
10
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
VN820SPTR-E Frequently Asked Questions (FAQs)
-
A good PCB layout for VN820SPTR-E involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the power source. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
Proper cooling of VN820SPTR-E involves providing a heat sink with a thermal resistance of less than 10°C/W, ensuring good airflow, and keeping the device away from other heat sources. A thermal interface material can also be used to improve heat transfer.
-
When handling VN820SPTR-E, precautions include using an anti-static wrist strap or mat, handling the device by the body and not the pins, and avoiding bending or flexing the pins. It's also important to store the device in an anti-static bag or wrap.
-
To troubleshoot issues with VN820SPTR-E, start by checking the power supply voltage, current, and temperature. Verify that the device is properly soldered and that the PCB layout is correct. Use a thermal camera or thermometer to check for hotspots, and consult the datasheet and application notes for guidance.
-
When designing a power supply using VN820SPTR-E, key considerations include selecting the right input and output capacitors, choosing the optimal switching frequency, and ensuring proper thermal management. It's also important to follow the recommended layout and PCB design guidelines.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
VN820SPTR-E Overview

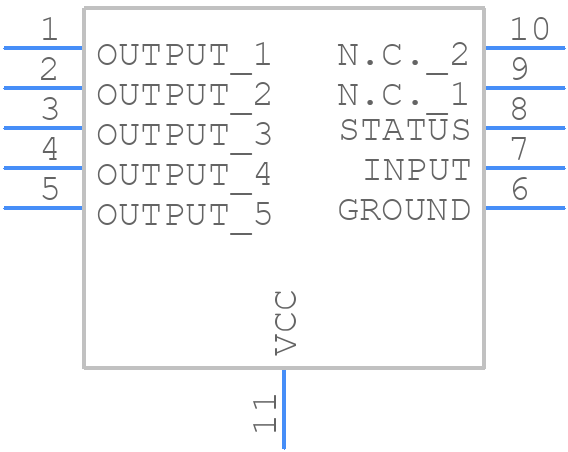

Use the download button to access the VN820SPTR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VN820,
or try a keyword search, such as Peripheral Drivers
