VN9004AJTR - STMicroelectronics

Description: Single channel high-side driver with Current Sense analog feedback for automotive applications 36 V, 108 A, PowerSSO-16

Download VN9004AJTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

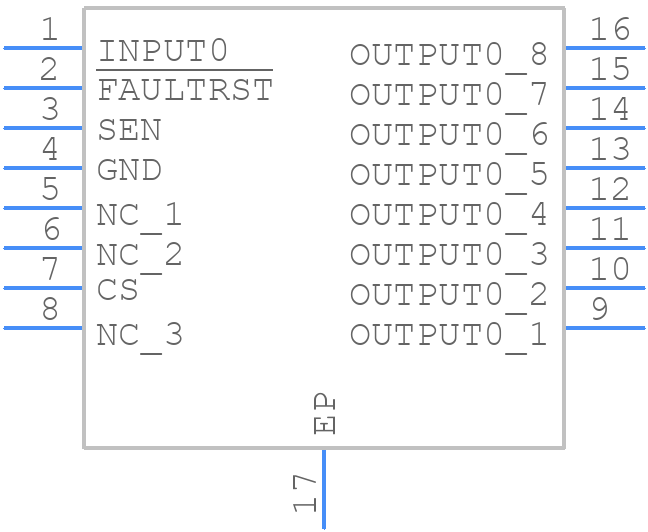

VN9004AJTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN9004AJTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-16_1
click to zoom
3D Models
VN9004AJTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-16_1
click to zoom

VN9004AJTR Details

  • Manufacturer Part Number:

    VN9004AJTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

VN9004AJTR Frequently Asked Questions (FAQs)

  • The VN9004AJTR can operate in a temperature range of -40°C to 150°C.
  • To ensure EMC, follow proper PCB design guidelines, use a shielded cable, and consider adding a common-mode choke or ferrite bead to the power supply lines.
  • Follow STMicroelectronics' recommended layout and routing guidelines, keeping sensitive analog signals away from digital signals and using a solid ground plane to reduce noise.
  • Use a logic analyzer or oscilloscope to monitor signals, check for proper power supply and decoupling, and verify correct pin connections and configuration.
  • Yes, the VN9004AJTR is designed to withstand vibrations up to 10g, but ensure proper PCB mounting and consider adding mechanical stress relief measures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN9004AJTR Overview

Use the download button to access the VN9004AJTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VN900, or try a keyword search, such as Peripheral Drivers
