VN9016AJTR - STMicroelectronics

Description: Single channel high-side driver with current sense analog feedback for automotive applications

Download VN9016AJTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

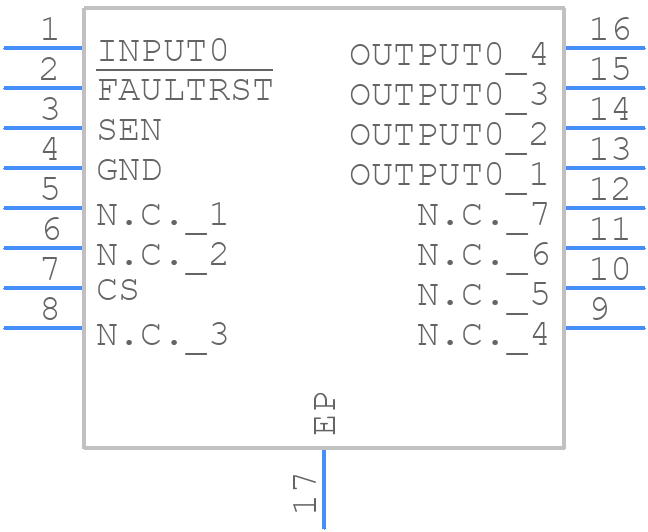

VN9016AJTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN9016AJTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-16
click to zoom
3D Models
VN9016AJTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-16
click to zoom

VN9016AJTR Details

  • Manufacturer Part Number:

    VN9016AJTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

VN9016AJTR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using a heat sink or thermal interface material to reduce the junction-to-ambient thermal resistance.
  • STMicroelectronics recommends using a ceramic capacitor with a value between 1uF to 10uF, and a voltage rating of at least 25V. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stable operation.
  • To troubleshoot issues with the VN9016AJTR, start by verifying the input voltage, output voltage, and current consumption. Check for proper PCB layout, decoupling, and thermal management. Use an oscilloscope to monitor the output voltage and current, and consult the application notes and datasheet for guidance on troubleshooting common issues.
  • Yes, the VN9016AJTR is suitable for high-reliability and automotive applications. It meets the AEC-Q100 qualification standard for automotive-grade ICs and is designed to operate in harsh environments. However, it's essential to follow the recommended operating conditions, and consult with STMicroelectronics or a qualified engineer to ensure the device meets the specific requirements of your application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN9016AJTR Overview

Use the download button to access the VN9016AJTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VN901, or try a keyword search, such as Peripheral Drivers
