VN920SP-E - STMicroelectronics

Description: STMicroelectronics VN920SP-E, High Side Power Switch 10-Pin, PowerSO

Download VN920SP-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

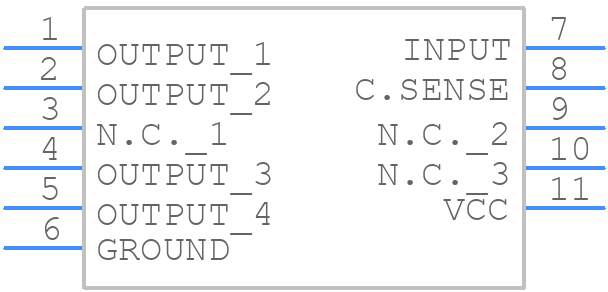

VN920SP-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VN920SP-E - STMicroelectronics PCB footprint - Other - Other - VN920SP-E-1
click to zoom

VN920SP-E Details

  • Manufacturer Part Number:

    VN920SP-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, POWER, SO-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    9.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    30 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP10,.55FL

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.65 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

VN920SP-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2861, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The VN920SP-E has a low-power mode that can be enabled by setting the EN pin low. Additionally, the device can be configured to enter a low-power state by setting the STBY pin high. Refer to the datasheet for specific timing and voltage requirements.
  • The VN920SP-E is rated for operation from -40°C to 150°C (junction temperature). However, the device can be operated at temperatures up to 175°C for short periods of time, but this may affect its reliability and lifespan.
  • Yes, the VN920SP-E is AEC-Q100 qualified, making it suitable for use in automotive applications. However, it's essential to ensure that the device is used within its specified operating conditions and that the system design meets the required automotive standards.
  • STMicroelectronics provides a troubleshooting guide in the application note AN2861, which covers common issues and their solutions. Additionally, engineers can use oscilloscopes and logic analyzers to debug the device and identify potential issues.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VN920SP-E Overview

Use the download button to access the VN920SP-E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like VN920, or try a keyword search, such as Peripheral Drivers
