VND5E050AKTR-E - STMicroelectronics

Description: Double channel high side driver with analog current sense for automotive applications

Download VND5E050AKTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

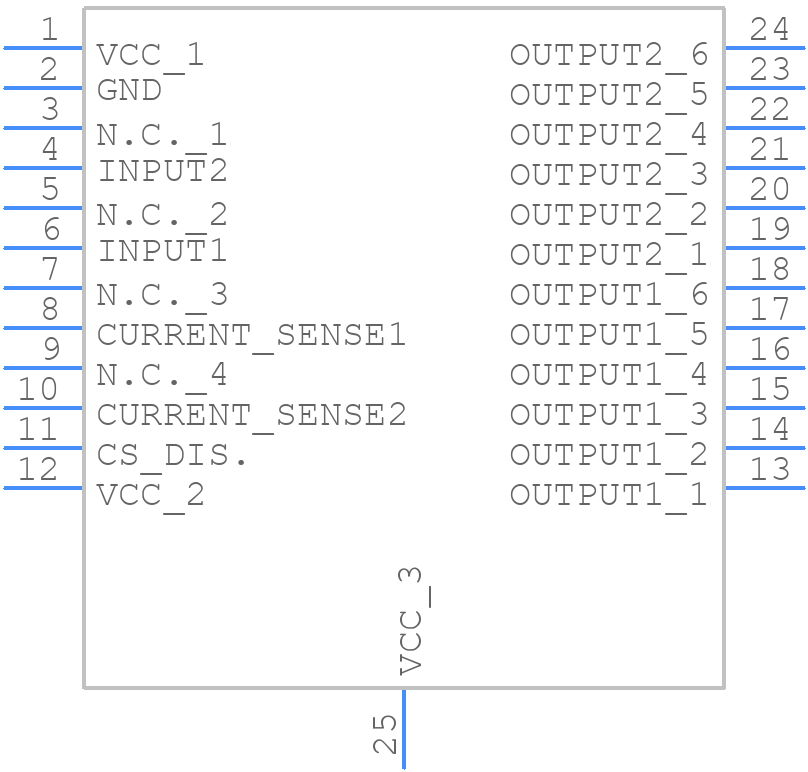

Symbol
VND5E050AKTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND5E050AKTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-24 package
click to zoom
3D Models
VND5E050AKTR-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-24 package
click to zoom

VND5E050AKTR-E Details

  • Manufacturer Part Number:

    VND5E050AKTR-E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SOP24,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    45 µs

  • Turn-on Time:

    20 µs

  • Width:

    7.5 mm

VND5E050AKTR-E Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the VND5E050AKTR-E is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal management guidelines, such as using a heat sink, and ensuring good airflow around the device. Additionally, the device should be operated within the recommended voltage and current ratings.
  • The recommended PCB layout and design considerations for the VND5E050AKTR-E include using a multi-layer PCB with a solid ground plane, keeping the device away from high-frequency noise sources, and using short and wide traces for the power and ground connections.
  • To troubleshoot issues with the VND5E050AKTR-E, start by checking the device's operating conditions, such as voltage, current, and temperature. Verify that the device is properly soldered and that there are no signs of physical damage. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue.
  • Yes, the VND5E050AKTR-E is a sensitive device and requires proper ESD protection measures during handling, storage, and assembly. This includes using ESD-safe materials, grounding straps, and following proper handling procedures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VND5E050AKTR-E Overview

Use the download button to access the VND5E050AKTR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VND5E, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
