VND5T016ASP-E - STMicroelectronics

Description: Double channel high-side driver with analog current-sense for 24V automotive applications, 16mΩ, 16mOhm, 70A, -40°C ~ 150°C

Download VND5T016ASP-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

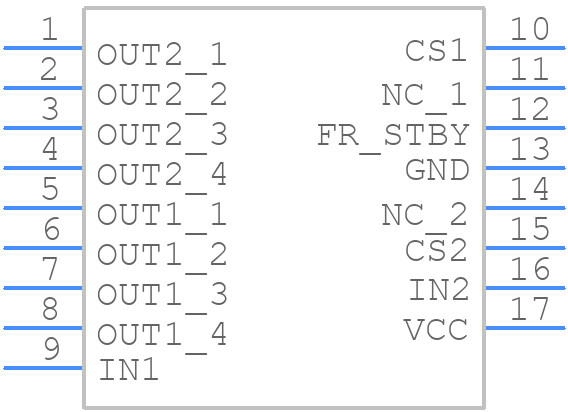

VND5T016ASP-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND5T016ASP-E - STMicroelectronics PCB footprint - Other - Other - PowerSO-16_2025
click to zoom
3D Models
VND5T016ASP-E - STMicroelectronics - 3D model - Other - PowerSO-16_2025
click to zoom

VND5T016ASP-E Details

  • Manufacturer Part Number:

    VND5T016ASP-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PowerSO-18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G18

  • JESD-609 Code:

    e3

  • Length:

    9.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-SOURCE

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    70 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP16,.55,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    225

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.6 mm

  • Supply Current-Max:

    6.5 mA

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    45 µs

  • Turn-on Time:

    50 µs

  • Width:

    7.5 mm

VND5T016ASP-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4841, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The datasheet provides a list of recommended external components, including capacitors, resistors, and inductors. Additionally, STMicroelectronics provides a component selection guide in the application note AN4841, which helps engineers choose the right components based on their specific application requirements.
  • The VND5T016ASP-E has a maximum junction temperature of 150°C. To ensure reliable operation, engineers should follow the thermal management guidelines in the datasheet, including providing adequate heat sinking, using thermal interface materials, and minimizing thermal resistance.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4841, which covers common issues such as overvoltage, undervoltage, and overheating. Engineers can also consult the datasheet and STMicroelectronics' technical support resources for additional guidance.
  • The VND5T016ASP-E has built-in ESD protection, but engineers should still follow proper ESD handling and storage procedures to prevent damage. The datasheet provides guidelines for ESD protection, and engineers can also consult STMicroelectronics' application notes for additional information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VND5T016ASP-E Overview

Use the download button to access the VND5T016ASP-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VND5T, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics
