VND5T016ASPTR-E - STMicroelectronics

Description: Double channel high side driver with analog CurrentSense for 24 V automotive applications

Download VND5T016ASPTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

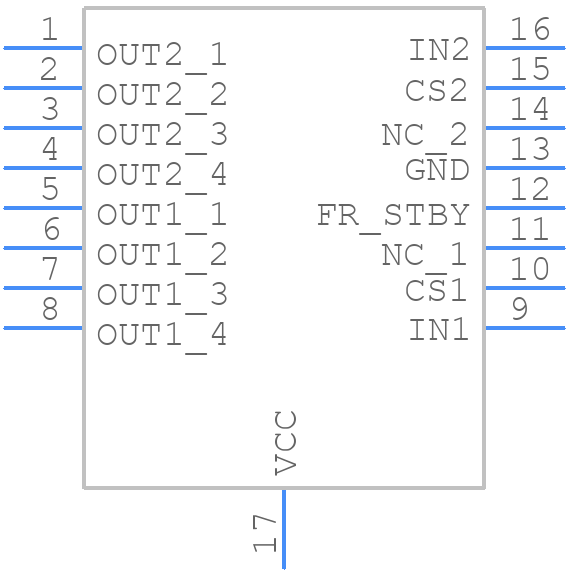

VND5T016ASPTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND5T016ASPTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO-16
click to zoom
3D Models
VND5T016ASPTR-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSO-16
click to zoom

VND5T016ASPTR-E Details

  • Manufacturer Part Number:

    VND5T016ASPTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SOP-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.15

  • Built-in Protections:

    TRANSIENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SOP16,.55,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    225

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    3.6 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

VND5T016ASPTR-E Frequently Asked Questions (FAQs)

  • A good PCB layout for the VND5T016ASPTR-E should consider the following: keep the input and output tracks as short as possible, use a ground plane to reduce EMI, and place decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure reliable operation over the full temperature range, make sure to follow the recommended operating conditions, including voltage and current ratings. Also, consider the thermal management of the device, and ensure that the PCB design allows for good heat dissipation.
  • The VND5T016ASPTR-E has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
  • The VND5T016ASPTR-E is a high-reliability device, but it's essential to follow the recommended design and testing procedures to ensure the device meets the required safety and reliability standards for your specific application.
  • STMicroelectronics provides a range of application notes and validation procedures for the VND5T016ASPTR-E. Follow the recommended test procedures, including electrical characterization, thermal testing, and reliability testing, to ensure the device meets the required specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VND5T016ASPTR-E Overview

Use the download button to access the VND5T016ASPTR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VND5T, or try a keyword search, such as Peripheral Drivers
