VND5T035LAKTR-E - STMicroelectronics

Description: Double channel high-side driver with analog current sense for 24 V automotive applications

Download VND5T035LAKTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

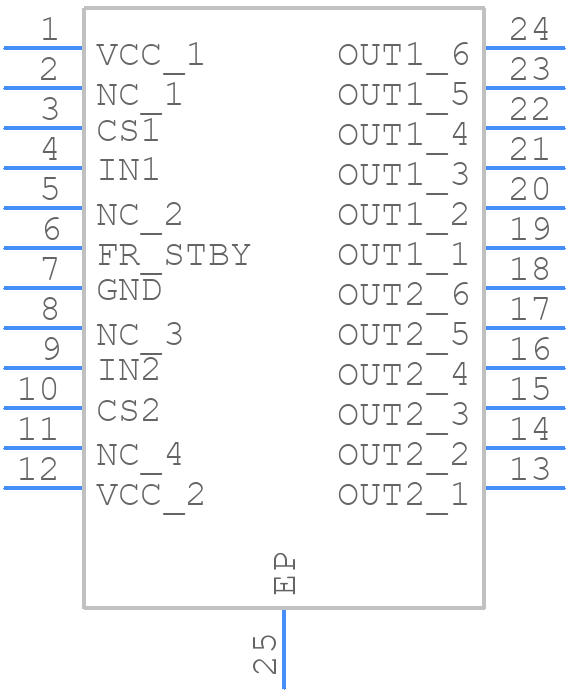

VND5T035LAKTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

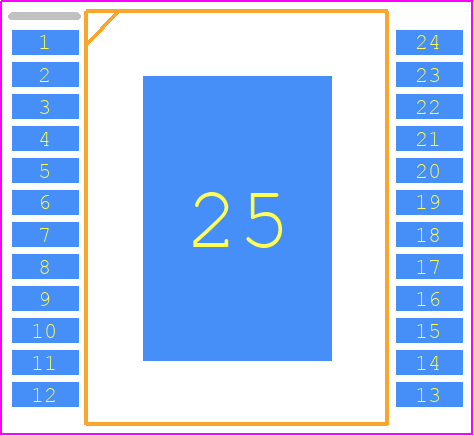

VND5T035LAKTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-24_2022_1
click to zoom
3D Models
VND5T035LAKTR-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-24_2022_1
click to zoom

VND5T035LAKTR-E Details

  • Manufacturer Part Number:

    VND5T035LAKTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PowerSSO-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.32

  • Built-in Protections:

    OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE; TRANSIENT

  • Driver Number of Bits:

    2

  • Input Characteristics:

    GATED

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    10.3 mm

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-SOURCE

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP24,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.47 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    54 µs

  • Turn-on Time:

    46 µs

  • Width:

    7.5 mm

VND5T035LAKTR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • STMicroelectronics provides a soldering and rework guide in the application note AN1231, which includes guidelines for soldering, desoldering, and reworking the device to ensure reliable connections and minimize damage.
  • The VND5T035LAKTR-E has a thermal pad that must be connected to a thermal ground plane to ensure proper heat dissipation. A thermal interface material (TIM) can be used to improve thermal conductivity. The device's thermal resistance (RthJA) is specified in the datasheet.
  • STMicroelectronics provides a troubleshooting guide in the application note AN1232, which includes common issues, symptoms, and solutions for the VND5T035LAKTR-E. Additionally, the device's behavior can be monitored using the built-in diagnostic features and error flags.
  • The VND5T035LAKTR-E has built-in ESD protection, but additional protection measures may be necessary depending on the application. STMicroelectronics recommends following the ESD protection guidelines in the application note AN1233 to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VND5T035LAKTR-E Overview

Use the download button to access the VND5T035LAKTR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VND5T, or try a keyword search, such as Peripheral Drivers
