VND7012AYTR - STMicroelectronics

Description: Power Switch ICs - Power Distribution Double channel high-side driver with MultiSense analog feedback

Download VND7012AYTR Model
Schematic
symbols

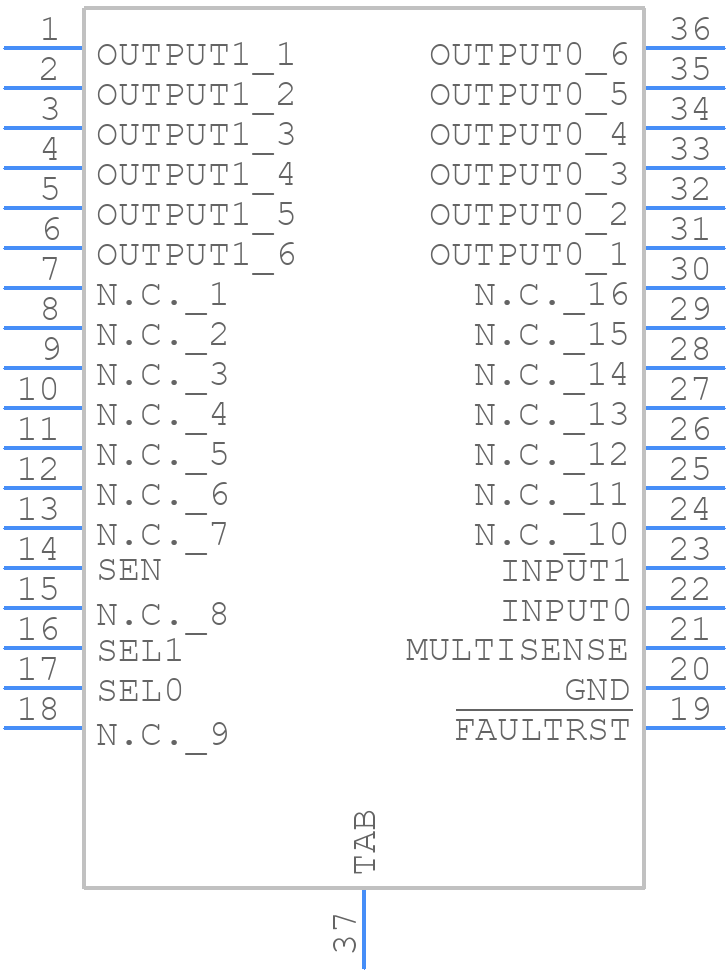

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
VND7012AYTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - power sso 36
click to zoom
3D Models
VND7012AYTR - STMicroelectronics  - 3D model - Small Outline Packages - power sso 36
click to zoom

VND7012AYTR Details

  • Manufacturer Part Number:

    VND7012AYTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    PWSSO 36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed
