VND7020AJTR-E - STMicroelectronics

Description: Power Switch ICs - Power Distribution Double chnl hi-side Multi-Sense analog

Download VND7020AJTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

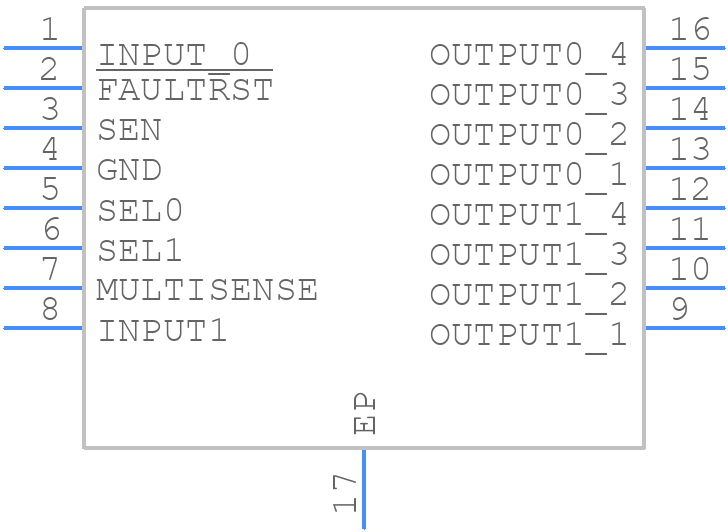

VND7020AJTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND7020AJTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - VND7020AJ
click to zoom
3D Models
VND7020AJTR-E - STMicroelectronics - 3D model - Small Outline Packages - VND7020AJ
click to zoom

VND7020AJTR-E Details

  • Manufacturer Part Number:

    VND7020AJTR-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, SSOP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Equivalence Code:

    SSOP16,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    100 µs

  • Turn-on Time:

    120 µs

  • Width:

    3.9 mm

VND7020AJTR-E Frequently Asked Questions (FAQs)

  • A good PCB layout for the VND7020AJTR-E involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the power source. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The VND7020AJTR-E has a thermal pad on the bottom of the package, which should be connected to a heat sink or a thermal pad on the PCB. Ensure good thermal contact between the device and the heat sink or thermal pad. A thermal interface material (TIM) can be used to improve heat transfer.
  • The recommended input capacitor value for the VND7020AJTR-E is 10uF to 22uF, with a voltage rating of 25V or higher. A low-ESR capacitor is recommended to minimize voltage ripple and ensure stable operation.
  • The VND7020AJTR-E has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, additional protection can be added using external components such as a voltage supervisor or a power-on reset circuit.
  • The maximum current rating of the VND7020AJTR-E is 2A. However, the actual current handling capability depends on the PCB layout, thermal management, and operating conditions.
