VND7140AJTR - STMicroelectronics

Description: Double channel high-side driver with MultiSense analog feedback for automotive applications

Download VND7140AJTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

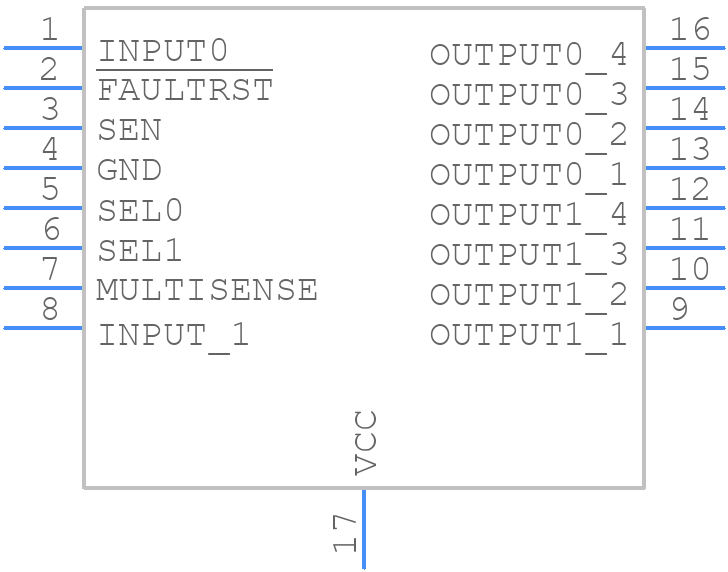

Symbol
VND7140AJTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND7140AJTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - VND7140AJTR
click to zoom
3D Models
VND7140AJTR - STMicroelectronics - 3D model - Small Outline Packages - VND7140AJTR
click to zoom

VND7140AJTR Details

  • Manufacturer Part Number:

    VND7140AJTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    POWERSSO-16

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.3

  • Built-in Protections:

    OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Output Current Flow Direction:

    SINK

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP16,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    100 µs

  • Turn-on Time:

    120 µs

  • Width:

    3.9 mm

VND7140AJTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the VND7140AJTR involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the battery. A 4-layer PCB with a dedicated power plane is recommended.
  • Proper cooling of the VND7140AJTR can be achieved by providing a heat sink with a thermal resistance of less than 10°C/W, ensuring good airflow, and keeping the device away from other heat sources.
  • Not using the recommended external components, such as the bootstrap capacitor and the sense resistors, can lead to reduced performance, instability, and potentially damage to the device.
  • To troubleshoot issues with the VND7140AJTR, check the input voltage, output current, and temperature. Verify that the device is properly configured and that the external components are correctly selected and connected.
  • The VND7140AJTR is rated for operation up to 150°C, but the device's performance and reliability may be affected at high temperatures. Ensure proper cooling and consider derating the device's performance at high temperatures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VND7140AJTR Overview

Use the download button to access the VND7140AJTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VND71, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
