VND810SP13TR - STMicroelectronics

Description: Power Switch/Driver 1:1 N-Channel 3.5A 10-PowerSO

Download VND810SP13TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

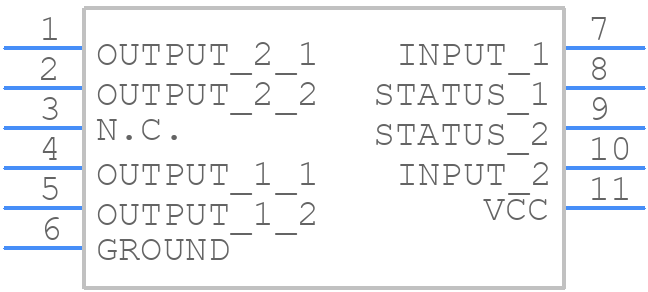

VND810SP13TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND810SP13TR - STMicroelectronics PCB footprint - Other - Other - PowerSO-10__002
click to zoom

VND810SP13TR Details

  • Manufacturer Part Number:

    VND810SP13TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, POWER, SO-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    9.4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP10,.55FL

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.75 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

VND810SP13TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of external components such as resistors, capacitors, and inductors depends on the specific application and operating conditions. STMicroelectronics provides a component selection guide in the application note AN4979, which includes formulas and guidelines for selecting the correct components.
  • The VND810SP13TR is rated for operation from -40°C to 150°C, but the maximum operating temperature range may vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4979, which includes common issues, symptoms, and solutions for problems such as overheating, oscillations, and output voltage errors.
  • The VND810SP13TR is a sensitive electronic component that requires proper handling and storage to prevent damage. STMicroelectronics recommends following standard electrostatic discharge (ESD) precautions, storing the device in a dry and clean environment, and avoiding mechanical stress or damage.
