VND830ASP-E footprint, schematic symbol and 3D model by STMicroelectronics

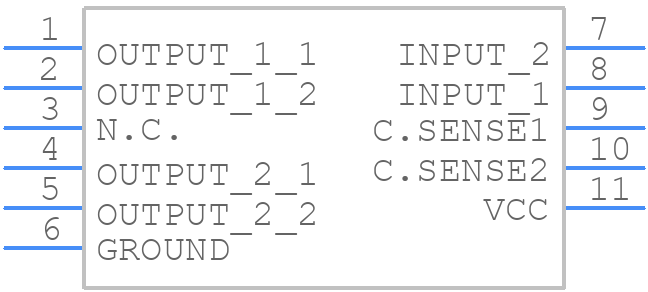

Symbol

click to zoom

PCB Footprints

VND830ASP-E - STMicroelectronics PCB footprint - Other - Other - PowerSO-10_2026-2.8

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VND830ASP-E
Part Number VND830ASP-E
Manufacturer STMicroelectronics
Pin Count 11
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - PowerSO-10_2026-2.8
Released Date Apr 23, 2026
Last Modified Date Apr 23, 2026 9:37 AM UTC
Pinout / Pin List Click Here (Member Only)

VND830ASP-E Details

Manufacturer Part Number:
VND830ASP-E
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
SOIC
Package Description:
ROHS COMPLIANT, SOP-10
Pin Count:
10
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
0
Driver Number of Bits:
2
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G10
JESD-609 Code:
e3
Moisture Sensitivity Level:
3
Number of Terminals:
10
Output Current Flow Direction:
SINK
Output Current-Max:
2 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP10,.55FL
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
250
Qualification Status:
Not Qualified
Surface Mount:
YES
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30

VND830ASP-E Frequently Asked Questions (FAQs)

STMicroelectronics provides a recommended PCB layout in the application note AN2674, which includes guidelines for component placement, routing, and thermal management.
The VND830ASP-E requires a stable power supply with adequate decoupling capacitors. A 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel are recommended for decoupling. Additionally, a 100nF capacitor is recommended for filtering.
The VND830ASP-E is rated for operation from -40°C to 125°C, but the maximum operating temperature range may vary depending on the specific application and environmental conditions.
The VND830ASP-E has a low-power mode that can be enabled by setting the EN pin low. Additionally, the device can be configured for low-power mode by setting the SLEEP pin high and the WAKE pin low.
The maximum current rating for the VND830ASP-E is 1.5A, but this may vary depending on the specific application and environmental conditions.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

VND830ASP-E Overview

Use the download button to access the VND830ASP-E schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like VND83, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut

Parts related to VND830ASP-E

Showing 0 results

Image	Part Number	Model
	VND830ASP STMicroelectronics Buffer/Inverter Based Peripheral Driver, 2 Driver, 9A, PDSO10
	VND830ASPTR-E STMicroelectronics Buffer/Inverter Based Peripheral Driver, 2 Driver, PDSO10
For a full list of alternate parts for VND830ASP-E, check out Findchips.com
