VND830LSPTR-E - STMicroelectronics

Description: Double channel high-side driver RDS(on) 60 mΩ , IOUT 18 A , VCC 36V

Download VND830LSPTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

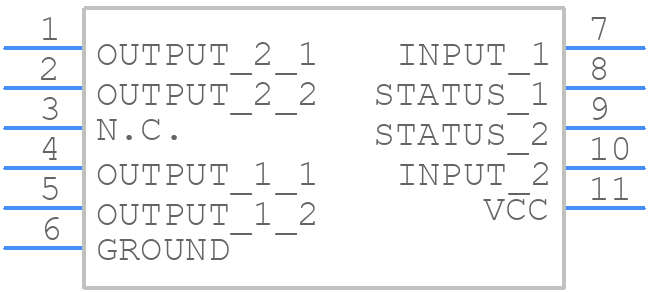

Symbol
VND830LSPTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND830LSPTR-E - STMicroelectronics PCB footprint - Other - Other - PowerSO-10_2026-2.2
click to zoom

VND830LSPTR-E Details

  • Manufacturer Part Number:

    VND830LSPTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, POWER, SO-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    9.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    18 A

  • Output Peak Current Limit-Nom:

    23 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP10,.55FL

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.75 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

VND830LSPTR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of external components such as resistors, capacitors, and inductors depends on the specific application and operating conditions. STMicroelectronics provides a component selection guide in the application note AN4979, which includes formulas and guidelines for selecting the correct components.
  • The VND830LSPTR-E is rated for operation from -40°C to 150°C, but the maximum operating temperature range may vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4979, which includes common issues, symptoms, and solutions. Additionally, engineers can consult the datasheet and contact STMicroelectronics support for further assistance.
  • When working with the VND830LSPTR-E, engineers should follow proper safety precautions to avoid electrical shock, injury, or damage to the device. This includes following proper handling and storage procedures, using appropriate safety equipment, and ensuring proper thermal management.
