VND920 - STMicroelectronics

Description: Power Switch/Driver 1:1 N-Channel 30A 28-SO

Download VND920 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

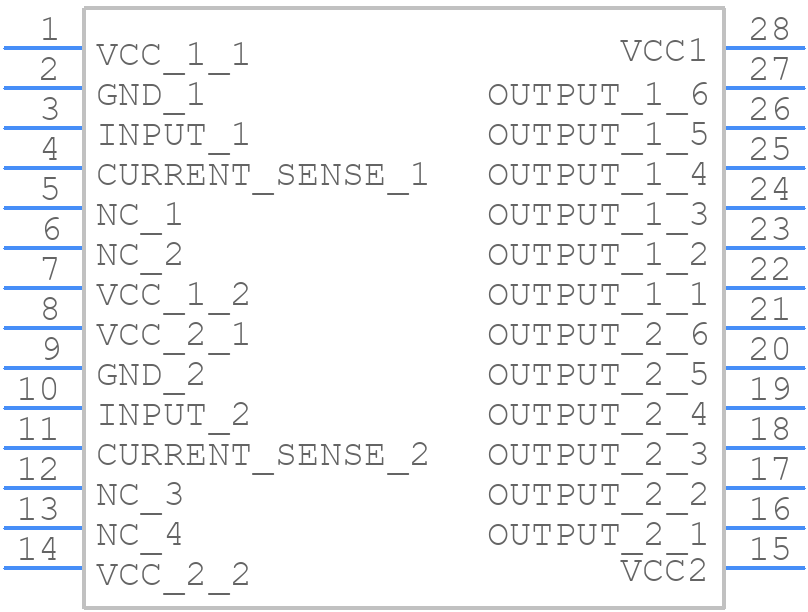

VND920 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VND920 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-28_2023
click to zoom
3D Models
VND920 - STMicroelectronics - 3D model - Small Outline Packages - SO-28_2023
click to zoom

VND920 Details

  • Manufacturer Part Number:

    VND920

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SO-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
