VNF1048FTR - STMicroelectronics

Description: High-side switch controller with intelligent fuse protection for 12 V, 24 V and 48 V automotive applications

Download VNF1048FTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

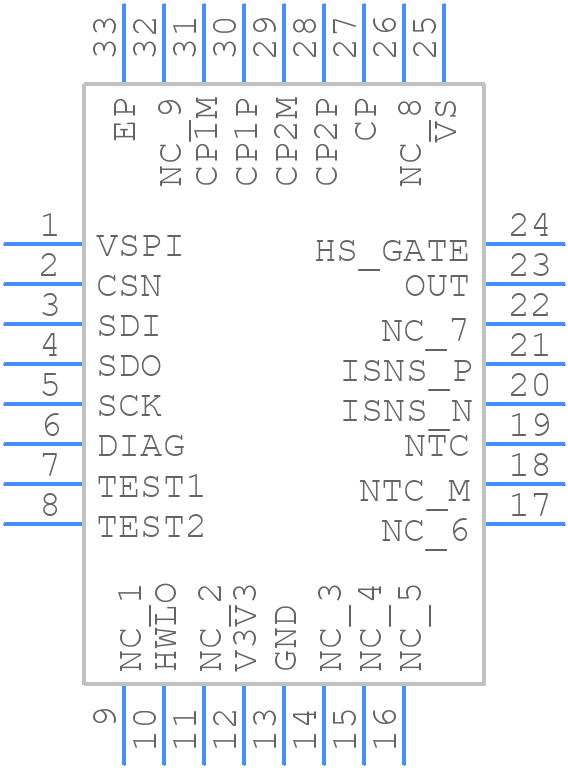

Symbol
VNF1048FTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNF1048FTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-32L WF_2023
click to zoom
3D Models
VNF1048FTR - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN-32L WF_2023
click to zoom

VNF1048FTR Details

  • Manufacturer Part Number:

    VNF1048FTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.05 mm

  • Supply Current-Max (Isup):

    11 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +0.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

VNF1048FTR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet, and to ensure good thermal conduction to the PCB and heat sink.
  • STMicroelectronics recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF, depending on the specific application requirements, to ensure optimal performance and stability.
  • To troubleshoot issues with the device's overcurrent protection feature, check the input voltage, output current, and sense resistor values to ensure they are within the recommended specifications, and verify that the device is properly configured and enabled.
  • STMicroelectronics recommends using wide, low-impedance traces for the high-current paths, and to keep the traces as short as possible to minimize voltage drops and electromagnetic interference (EMI).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VNF1048FTR Overview

Use the download button to access the VNF1048FTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VNF10, or try a keyword search, such as Power Management Circuits
