VNHD7008AY footprint, schematic symbol and 3D model by STMicroelectronics

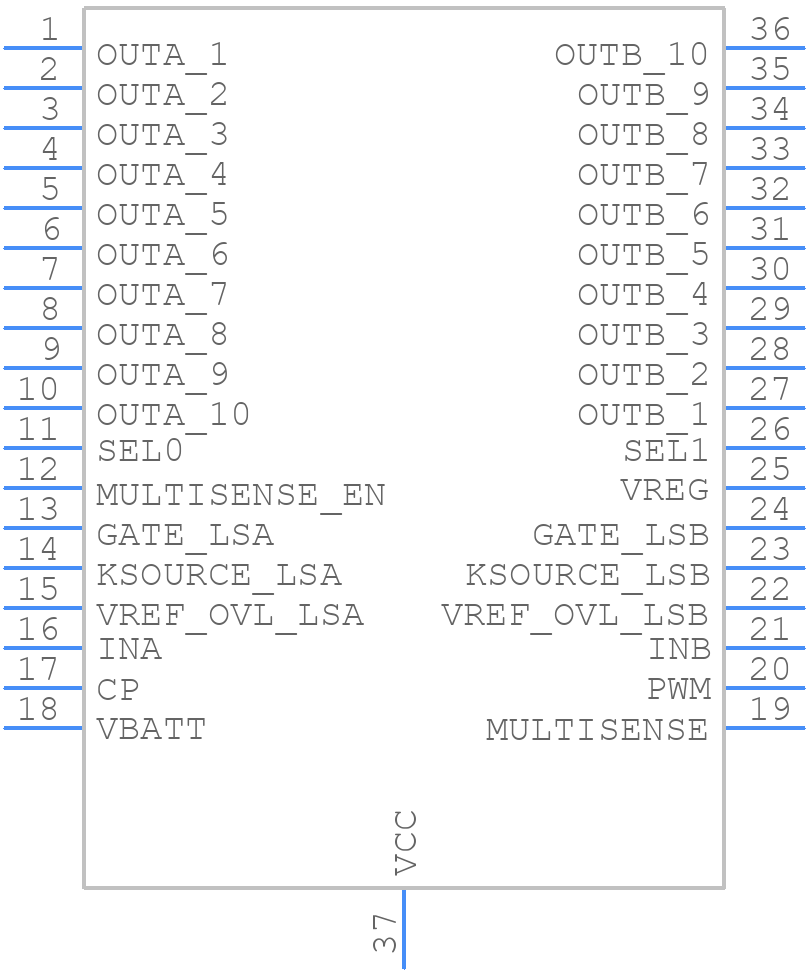

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VNHD7008AY
Part Number VNHD7008AY
Manufacturer STMicroelectronics
Pin Count 37
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PWSSO 36
Released Date Apr 22, 2026
Last Modified Date Apr 22, 2026 11:04 AM UTC
Pinout / Pin List Click Here (Member Only)

VNHD7008AY Details

Manufacturer Part Number:
VNHD7008AY
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
SSOP-36
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
0
Analog IC - Other Type:
HALF BRIDGE BRUSH DC MOTOR CONTROLLER
JESD-30 Code:
R-PDSO-G36
JESD-609 Code:
e3
Length:
10.3 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
36
Output Current-Max:
51 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSSOP
Package Equivalence Code:
SSOP36,.4,20
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
2.45 mm
Supply Current-Max (Isup):
18 mA
Supply Voltage-Max (Vsup):
28 V
Supply Voltage-Min (Vsup):
4 V
Supply Voltage-Nom (Vsup):
7 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
7.5 mm

VNHD7008AY Frequently Asked Questions (FAQs)

STMicroelectronics provides a recommended PCB layout in the application note AN4899, which includes guidelines for component placement, thermal management, and EMI reduction.
The datasheet provides a list of recommended external components, but for specific applications, you may need to consult the application note AN4899 or contact STMicroelectronics support for guidance on component selection.
The VNHD7008AY is rated for operation from -40°C to 150°C, but the maximum junction temperature (Tj) should not exceed 150°C. Ensure proper thermal management to prevent overheating.
The VNHD7008AY has an internal overcurrent protection feature, but you can also add external overcurrent protection using a dedicated IC or a fuse. Consult the datasheet and application note AN4899 for more information.
The VNHD7008AY can operate from a single 5.5V to 28V supply, but the recommended voltage range is 12V to 24V for optimal performance and reliability.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

VNHD7008AY Overview

Use the download button to access the VNHD7008AY schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like VNHD7, or try a keyword search, such as Motion Control Electronics
