VNHD7008AYTR - STMicroelectronics

Description: Gate Drivers H-bridge motor driver for automotive DC motor driving

Download VNHD7008AYTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

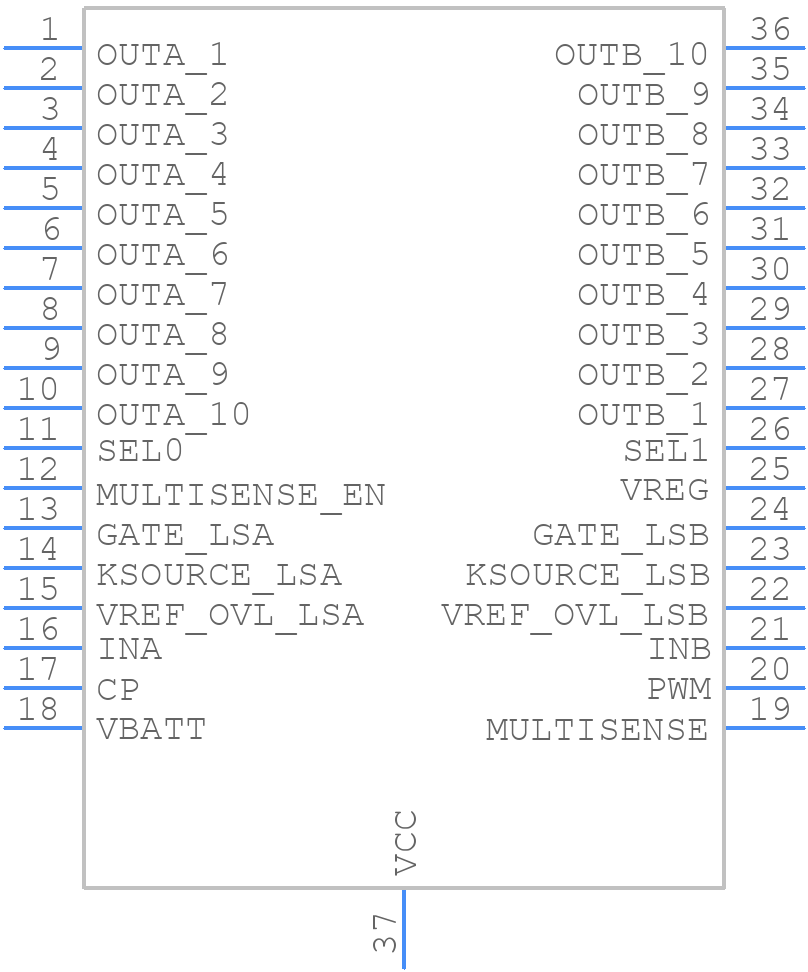

VNHD7008AYTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNHD7008AYTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36_5
click to zoom
3D Models
VNHD7008AYTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36_5
click to zoom

VNHD7008AYTR Details

  • Manufacturer Part Number:

    VNHD7008AYTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8.6

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Output Current-Max:

    51 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.45 mm

  • Supply Current-Max (Isup):

    18 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

VNHD7008AYTR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer or 4-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • Follow STMicroelectronics' guidelines for PCB layout, use a shielded cable for the output stage, and consider adding a common-mode choke to reduce electromagnetic interference (EMI).
  • The SOA is typically defined by the maximum current and voltage ratings. For the VNHD7008AYTR, the SOA is limited by the maximum current of 8A and voltage of 40V. Operating within these limits ensures safe and reliable operation.
  • Implement overvoltage protection (OVP) and overcurrent protection (OCP) circuits to prevent damage from voltage surges and excessive current. STMicroelectronics recommends using a voltage supervisor and a current sense resistor to monitor and respond to abnormal conditions.
  • A heatsink with a thermal resistance of 5°C/W or lower is recommended. The heatsink should be designed to provide good airflow and have a surface finish that ensures good thermal contact with the VNHD7008AYTR package.
