VNHD7012AY footprint, schematic symbol and 3D model by STMicroelectronics

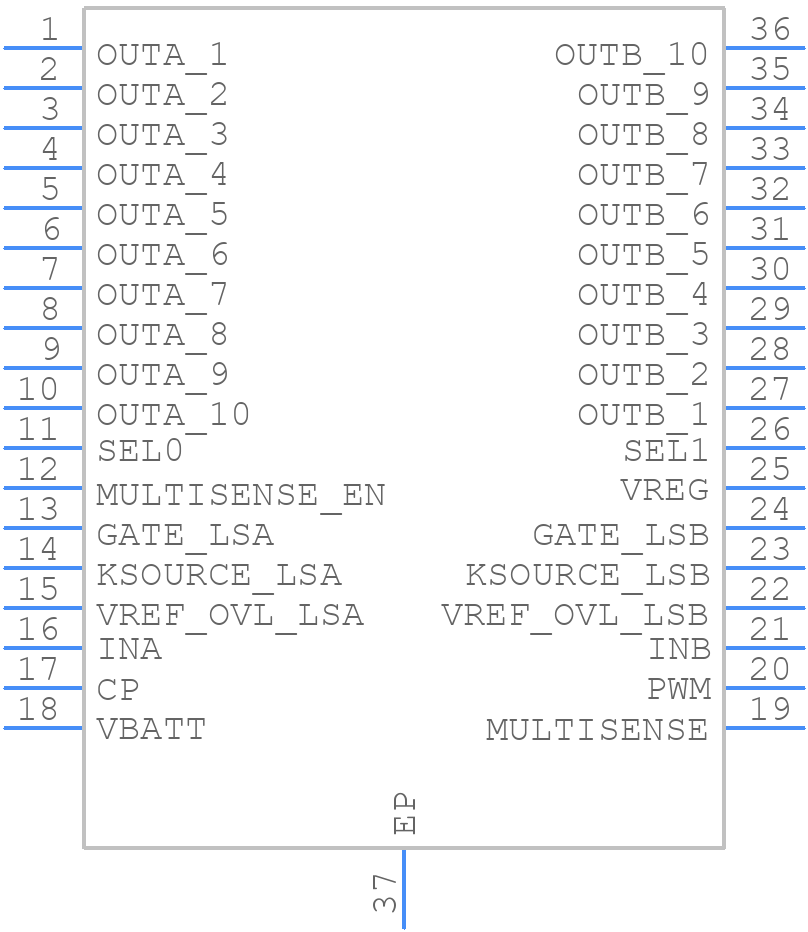

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VNHD7012AY
Part Number VNHD7012AY
Manufacturer STMicroelectronics
Pin Count 37
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PowerSSO-36 (exposed pad)
Released Date Apr 22, 2026
Last Modified Date Apr 22, 2026 11:04 AM UTC
Pinout / Pin List Click Here (Member Only)

VNHD7012AY Details

Manufacturer Part Number:
VNHD7012AY
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
SSOP-36
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2018-10-29
Manufacturer:
STMicroelectronics
YTEOL:
0
Analog IC - Other Type:
HALF BRIDGE BRUSH DC MOTOR CONTROLLER
JESD-30 Code:
R-PDSO-G36
JESD-609 Code:
e3
Length:
10.3 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
36
Output Current-Max:
38 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSSOP
Package Equivalence Code:
SSOP36,.4,20
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
2.45 mm
Supply Current-Max (Isup):
18 mA
Supply Voltage-Max (Vsup):
28 V
Supply Voltage-Min (Vsup):
4 V
Supply Voltage-Nom (Vsup):
7 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Width:
7.5 mm

VNHD7012AY Frequently Asked Questions (FAQs)

STMicroelectronics provides a recommended PCB layout in the application note AN4899, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor values depend on the specific application and operating conditions. A general guideline is to use capacitors with a capacitance value between 10nF to 100nF, and a voltage rating that exceeds the maximum input voltage. Consult the application note AN4899 for more detailed guidance.
The maximum allowed voltage drop across the VNHD7012AY is 0.5V. Exceeding this voltage drop may affect the device's performance and reliability. Ensure that the input voltage is within the recommended range and that the device is properly decoupled.
To ensure EMC compliance, follow the guidelines in the application note AN4899, which includes recommendations for PCB layout, component selection, and shielding. Additionally, consider using a metal shield or a shielded enclosure to minimize radiated emissions.
For high-power applications, it is essential to implement an effective thermal management strategy. This includes using a heat sink, thermal interface material, and ensuring good airflow around the device. Consult the application note AN4899 for more detailed guidance on thermal management.
