VNL5050S5-E footprint, schematic symbol and 3D model by STMicroelectronics

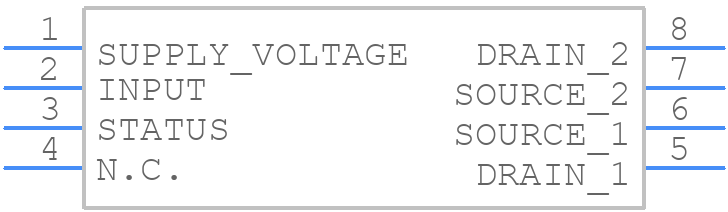

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VNL5050S5-E
Part Number VNL5050S5-E
Manufacturer STMicroelectronics
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - -SO-8 mechanical data--
Released Date Apr 22, 2026
Last Modified Date Apr 22, 2026 11:07 AM UTC
Pinout / Pin List Click Here (Member Only)

VNL5050S5-E Details

Manufacturer Part Number:
VNL5050S5-E
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
SOIC
Package Description:
ROHS COMPLIANT, SOP-8
Pin Count:
8
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
0
Additional Feature:
DETECTOR THRESHOLD VOLTAGE IS 1.2V
Adjustable Threshold:
NO
Analog IC - Other Type:
POWER SUPPLY SUPPORT CIRCUIT
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
3
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
8
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
245
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
3.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
40
Width:
3.9 mm

VNL5050S5-E Frequently Asked Questions (FAQs)

STMicroelectronics provides a recommended PCB layout in the application note AN2861, which includes guidelines for component placement, routing, and thermal management.
The VNL5050S5-E requires a 5V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to ensure a stable voltage supply. Additionally, decoupling capacitors should be placed close to the device to filter out noise and ensure stable operation.
The maximum current rating for the VNL5050S5-E is 1.5A, but it's recommended to limit the current to 1A for reliable operation and to prevent overheating.
The VNL5050S5-E can be configured for different operating modes using the EN and MODE pins. The datasheet provides a truth table for configuring the device for different modes, including normal operation, shutdown, and standby.
The VNL5050S5-E has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, the device should be placed in a well-ventilated area to prevent overheating.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

VNL5050S5-E Overview

Use the download button to access the VNL5050S5-E schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like VNL50, or try a keyword search, such as Power Management Circuits
