VNL5050S5TR-E - STMicroelectronics

Description: OMNIFET III fully protected low-side driver

Download VNL5050S5TR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

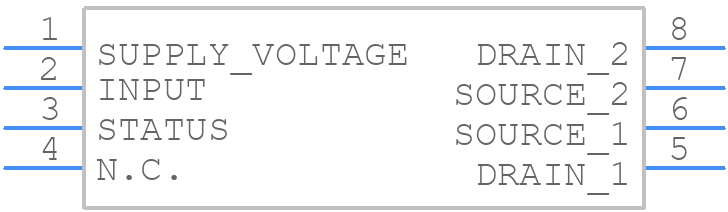

Symbol
VNL5050S5TR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNL5050S5TR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - -SO-8 mechanical data--
click to zoom
3D Models
VNL5050S5TR-E - STMicroelectronics - 3D model - Small Outline Packages - -SO-8 mechanical data--
click to zoom

VNL5050S5TR-E Details

  • Manufacturer Part Number:

    VNL5050S5TR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Additional Feature:

    DETECTOR THRESHOLD VOLTAGE IS 1.2V

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

VNL5050S5TR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2861, which includes guidelines for component placement, routing, and thermal management.
  • The VNL5050S5TR-E requires a stable power supply with adequate decoupling capacitors. A 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel are recommended for decoupling. Additionally, a 100nF capacitor is recommended for filtering.
  • The VNL5050S5TR-E is rated for operation from -40°C to 150°C, but the maximum operating temperature range depends on the specific application and thermal management. Consult the datasheet and application notes for more information.
  • The VNL5050S5TR-E has a low-power mode that can be enabled by setting the EN pin low. Additionally, the device can be configured for low-power mode by setting the MODE pin to a logic low. Consult the datasheet for more information on power management.
  • The VNL5050S5TR-E is sensitive to electrostatic discharge (ESD). It is recommended to use ESD protection devices such as TVS diodes or ESD arrays to protect the device from ESD events.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VNL5050S5TR-E Overview

Use the download button to access the VNL5050S5TR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VNL50, or try a keyword search, such as Power Management Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
