VNL5090S5TR-E - STMicroelectronics

Description: OMNIFET III: fully protected low-side driver

Download VNL5090S5TR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

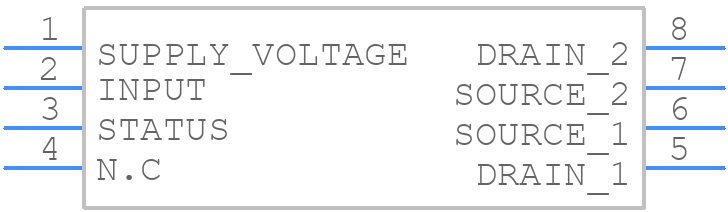

Symbol
VNL5090S5TR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNL5090S5TR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8
click to zoom
3D Models
VNL5090S5TR-E - STMicroelectronics - 3D model - Small Outline Packages - SO-8
click to zoom

VNL5090S5TR-E Details

  • Manufacturer Part Number:

    VNL5090S5TR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

VNL5090S5TR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2861, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The VNL5090S5TR-E requires a stable power supply with adequate decoupling capacitors to ensure proper operation. A minimum of 10uF decoupling capacitor is recommended, and it's essential to follow the power supply design guidelines outlined in the datasheet and application notes.
  • The VNL5090S5TR-E is rated for operation from -40°C to 125°C, but the maximum operating temperature range may vary depending on the specific application and environmental conditions. It's essential to consult the datasheet and application notes for specific temperature-related guidelines.
  • STMicroelectronics provides a troubleshooting guide in the application note AN2861, which includes a step-by-step approach to identifying and resolving common issues with the VNL5090S5TR-E. Additionally, engineers can consult the datasheet, application notes, and online resources for further guidance.
  • Yes, the VNL5090S5TR-E is a high-frequency device that requires careful consideration of electromagnetic interference (EMI) and electromagnetic compatibility (EMC). Engineers should follow the guidelines outlined in the datasheet and application notes to minimize EMI and ensure EMC compliance.
