VNL5160S5-E - STMicroelectronics

Description: Power Switch/Driver 3.5A 8-SOIC Low Side 3.5V ~ 5.5V 160mOhm Non-Inverting Surface Mount -40°C ~ 150°C

Download VNL5160S5-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

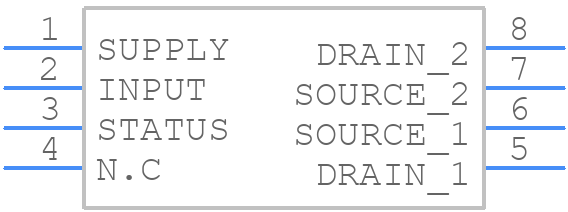

Symbol
VNL5160S5-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNL5160S5-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8
click to zoom
3D Models
VNL5160S5-E - STMicroelectronics - 3D model - Small Outline Packages - SO-8
click to zoom

VNL5160S5-E Details

  • Manufacturer Part Number:

    VNL5160S5-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

VNL5160S5-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for component placement, routing, and thermal management.
  • The VNL5160S5-E requires a 5V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to ensure a stable voltage supply. Additionally, decoupling capacitors should be placed close to the device to filter out noise and ensure stable operation.
  • The maximum current rating for the VNL5160S5-E is 1.5A, but it's recommended to limit the current to 1A for reliable operation and to prevent overheating.
  • The VNL5160S5-E can be configured for different operating modes using the EN (enable) and MODE pins. The datasheet provides a truth table for configuring the device for different modes, including normal operation, shutdown, and low-power modes.
  • The VNL5160S5-E has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, the device should be placed in a well-ventilated area to prevent overheating.
