VNLD5090TR-E - STMicroelectronics

Description: STMICROELECTRONICS - VNLD5090TR-E - POWER LOAD SW, AEC-Q100, LOW SIDE, SOIC8

Download VNLD5090TR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

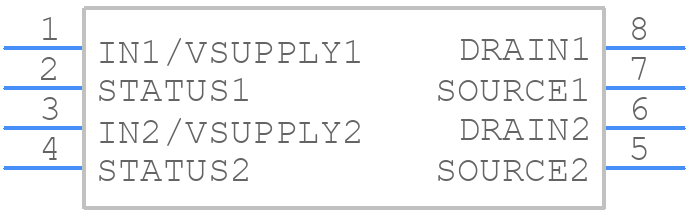

VNLD5090TR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNLD5090TR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - -SO-8 mechanical data--
click to zoom
3D Models
VNLD5090TR-E - STMicroelectronics - 3D model - Small Outline Packages - -SO-8 mechanical data--
click to zoom

VNLD5090TR-E Details

  • Manufacturer Part Number:

    VNLD5090TR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.98

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Silver/Gold (Ni/Pd/Ag/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

VNLD5090TR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • Follow STMicroelectronics' guidelines for PCB layout, use a shielded cable for the output, and ensure proper grounding to minimize electromagnetic interference.
  • The maximum allowed voltage drop across VNLD5090TR-E is 0.5V. Exceeding this may affect device performance and reliability.
  • While VNLD5090TR-E is rated for operation up to 150°C, it's essential to consider the device's power dissipation and thermal management to ensure reliable operation in high-temperature environments.
  • Check the input voltage, output load, and PCB layout. Verify that the device is properly soldered and that the thermal pad is connected to a heat sink or copper area. Consult STMicroelectronics' application notes and technical support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VNLD5090TR-E Overview

Use the download button to access the VNLD5090TR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VNLD5, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
