VNLD5300TR-E - STMicroelectronics

Description: STMICROELECTRONICS - VNLD5300TR-E - Power Load Distribution Switch, Low Side, 5.5 V Input, 2.8 A, 0.3 ohm, 2 Outputs, SOIC-8

Download VNLD5300TR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

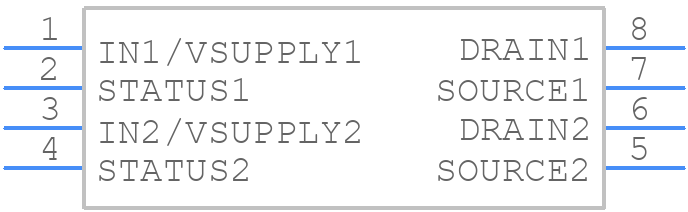

VNLD5300TR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNLD5300TR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8_VNLD
click to zoom
3D Models
VNLD5300TR-E - STMicroelectronics - 3D model - Small Outline Packages - SO-8_VNLD
click to zoom

VNLD5300TR-E Details

  • Manufacturer Part Number:

    VNLD5300TR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.98

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

VNLD5300TR-E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The datasheet provides a list of recommended external components, including resistors, capacitors, and inductors. Additionally, STMicroelectronics provides a component selection guide in the application note AN4979, which helps engineers choose the right components based on their specific application requirements.
  • The VNLD5300TR-E has a high power dissipation, so thermal management is crucial. Engineers should ensure good heat sinking, use thermal interface materials, and follow the recommended PCB layout to minimize thermal resistance. STMicroelectronics provides thermal management guidelines in the application note AN4979.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4979, which covers common issues, their causes, and solutions. Engineers can also consult the datasheet and STMicroelectronics' technical support resources for additional guidance.
  • Yes, the VNLD5300TR-E is a high-frequency device, and EMI/EMC considerations are crucial. Engineers should follow the recommended PCB layout, use shielding, and implement EMI filters to minimize electromagnetic interference. STMicroelectronics provides EMI/EMC guidelines in the application note AN4979.
