VNQ7003SY - STMicroelectronics

Description: Quad-channel high-side driver with 16-bit SPI interface for automotive applications

Download VNQ7003SY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

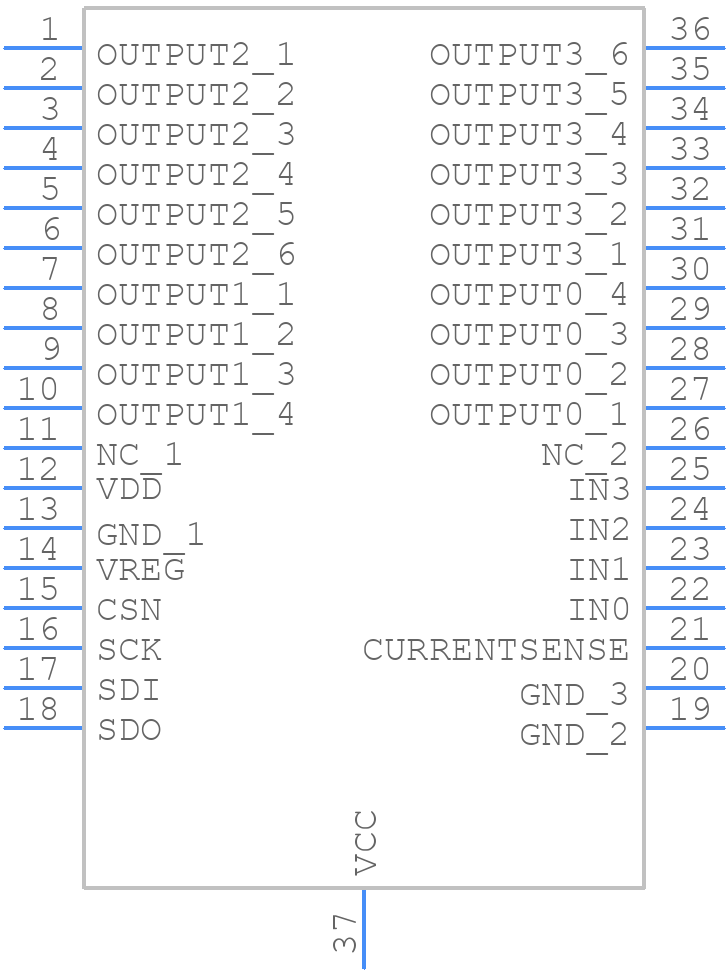

VNQ7003SY - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNQ7003SY - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PWSSO 36_2022-1
click to zoom
3D Models
VNQ7003SY - STMicroelectronics - 3D model - Small Outline Packages - PWSSO 36_2022-1
click to zoom

VNQ7003SY Details

  • Manufacturer Part Number:

    VNQ7003SY

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VNQ7003SY Overview

Use the download button to access the VNQ7003SY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VNQ70, or try a keyword search, such as Peripheral Drivers
