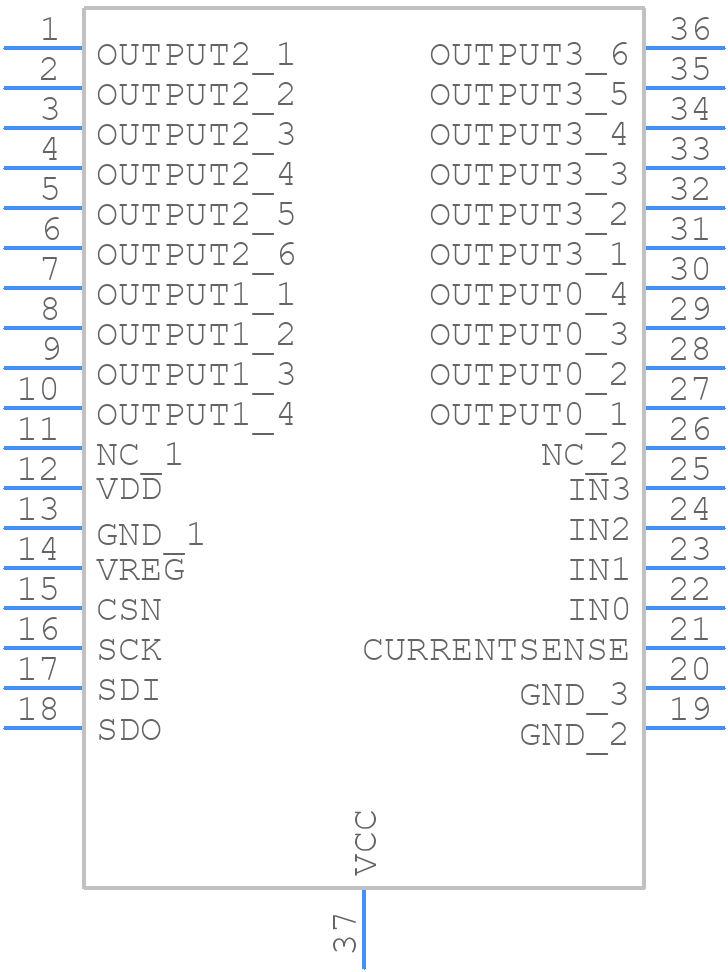

VNQ7003SYTR - STMicroelectronics

VNQ7003SYTR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of VNQ7003SYTR?
  STMicroelectronics recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the high-side and low-side drivers. The layout should also minimize the length of the high-current paths and ensure good thermal dissipation.
• How do I ensure the VNQ7003SYTR is properly configured for my specific application?
  STMicroelectronics provides a dedicated software tool, the 'eDesignSuite', which helps engineers to configure and optimize the VNQ7003SYTR for their specific application. The tool provides a graphical user interface to set up the device, simulate its behavior, and generate the required configuration code.
• What are the thermal management considerations for VNQ7003SYTR?
  The VNQ7003SYTR has a high power density, so thermal management is crucial. Ensure good airflow around the device, use a heat sink if necessary, and follow the recommended PCB layout guidelines to minimize thermal resistance. Monitor the device's junction temperature to prevent overheating.
• How do I troubleshoot issues with the VNQ7003SYTR?
  STMicroelectronics provides a comprehensive troubleshooting guide in the datasheet and application notes. Engineers can also use the 'eDesignSuite' tool to simulate and debug their design. Additionally, STMicroelectronics offers technical support and a community forum for further assistance.
• What are the EMI and EMC considerations for VNQ7003SYTR?
  The VNQ7003SYTR is designed to meet EMI and EMC standards. Ensure proper PCB layout, use shielding if necessary, and follow the recommended decoupling and filtering guidelines. STMicroelectronics also provides application notes and design guidelines for EMI and EMC compliance.
