VNQ7040AYTR - STMicroelectronics

Description: Quad channel high-side driver with MultiSense analog feedback for automotive applications

Download VNQ7040AYTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

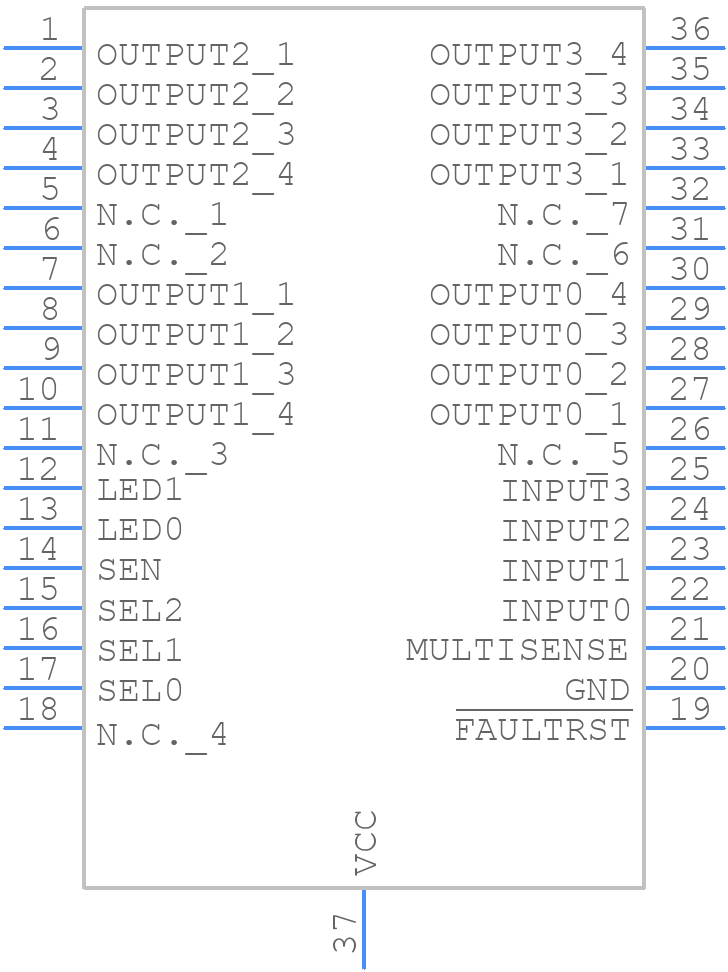

VNQ7040AYTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNQ7040AYTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - VNQ7040AYTR
click to zoom
3D Models
VNQ7040AYTR - STMicroelectronics - 3D model - Small Outline Packages - VNQ7040AYTR
click to zoom

VNQ7040AYTR Details

  • Manufacturer Part Number:

    VNQ7040AYTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    PWSSO 36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

VNQ7040AYTR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer or 4-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • To ensure EMC, use a shielded cable, keep the device away from high-frequency sources, and follow the recommended PCB layout and grounding scheme.
  • The maximum allowed voltage on the input pins is 40V, but it's recommended to keep it below 36V to ensure reliable operation.
  • Yes, the VNQ7040AYTR is rated for operation up to 150°C, but the device's performance and reliability may degrade above 125°C.
  • Use a logic analyzer or oscilloscope to monitor the input and output signals, and check the device's operating conditions, such as voltage and temperature, to identify the root cause of the issue.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VNQ7040AYTR Overview

Use the download button to access the VNQ7040AYTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VNQ70, or try a keyword search, such as Peripheral Drivers
