VNQ7E100AJTR - STMicroelectronics

Description: Quad channel high-side driver with CurrentSense analog feedback for automotive applications

Download VNQ7E100AJTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

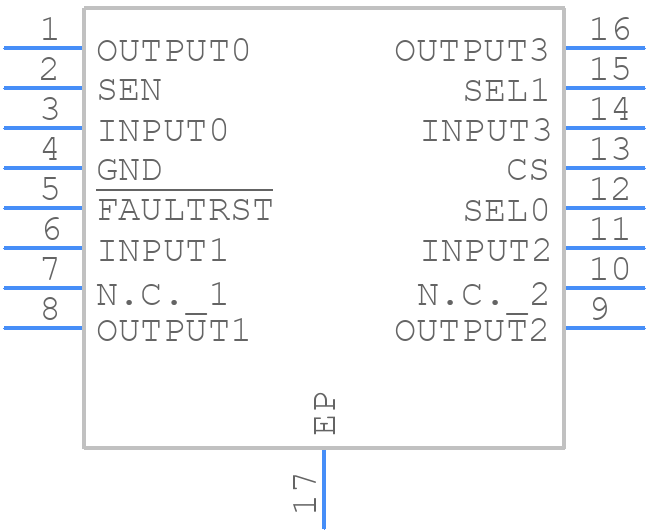

VNQ7E100AJTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNQ7E100AJTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-16-+++
click to zoom
3D Models
VNQ7E100AJTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-16-+++
click to zoom

VNQ7E100AJTR Details

  • Manufacturer Part Number:

    VNQ7E100AJTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Date Of Intro:

    2019-01-08

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

VNQ7E100AJTR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • Use a heat sink, ensure good airflow, and consider derating the device's current handling capability according to the temperature derating curve in the datasheet.
  • The maximum allowable voltage on the input pins is 6.5V, exceeding which may cause damage to the device.
  • Yes, the VNQ7E100AJTR is qualified according to the AEC-Q100 standard, making it suitable for high-reliability applications such as automotive systems.
  • Check the input voltage, output load, and PCB layout for any issues. Use an oscilloscope to measure the output voltage and check for any oscillations or noise.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VNQ7E100AJTR Overview

Use the download button to access the VNQ7E100AJTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VNQ7E, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
