VNQ830 - STMicroelectronics

Description: Quad channel high-side driver

Download VNQ830 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

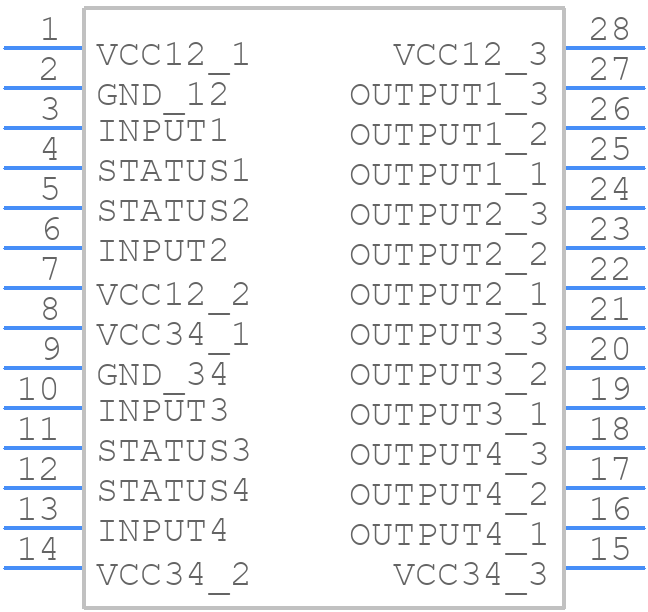

VNQ830 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNQ830 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO28...
click to zoom

VNQ830 Details

  • Manufacturer Part Number:

    VNQ830

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SO-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    28

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    2 A

  • Output Peak Current Limit-Nom:

    9 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

VNQ830 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4899, which includes guidelines for component placement, thermal management, and routing to minimize electromagnetic interference (EMI) and ensure reliable operation.
  • The VNQ830 datasheet provides a list of recommended external components, but for specific applications, engineers can use STMicroelectronics' online tools, such as the VNQ830 Component Selector, to find suitable components based on their requirements.
  • The VNQ830 has an operating temperature range of -40°C to 150°C, but the device's performance may degrade at higher temperatures. Engineers should consider the thermal management of their design to ensure the VNQ830 operates within its recommended temperature range.
  • STMicroelectronics provides a troubleshooting guide in the VNQ830 application note AN4899, which covers common issues and their solutions. Engineers can also use ST's online resources, such as the STMicroelectronics Support Center, to find answers to specific questions.
  • The VNQ830 is designed for high-reliability applications and is certified to various industry standards, including AEC-Q100 for automotive applications and IEC 61508 for functional safety. Engineers should consult the VNQ830 datasheet and relevant application notes for specific certification information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VNQ830 Overview

Use the download button to access the VNQ830 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like VNQ83, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics
