VNQ83013TR - STMicroelectronics

Description: Power Switch/Driver 1:1 N-Channel 6A 28-SO,6A,36V,-40°C ~ 150°C,SO-28

Download VNQ83013TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

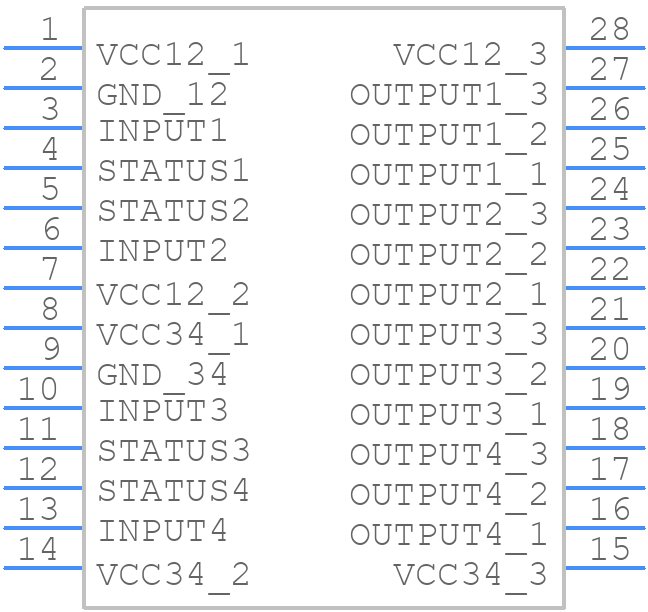

VNQ83013TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNQ83013TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-28_2026-1
click to zoom

VNQ83013TR Details

  • Manufacturer Part Number:

    VNQ83013TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SO-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    28

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    2 A

  • Output Peak Current Limit-Nom:

    9 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

VNQ83013TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4899, which includes guidelines for component placement, thermal management, and routing to minimize electromagnetic interference (EMI) and ensure reliable operation.
  • The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating higher than the maximum input voltage, a capacitance value between 1-10uF, and a low ESR (Equivalent Series Resistance) to minimize voltage ripple and ensure stable operation.
  • The VNQ83013TR has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (Tj) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4899, which covers common issues, diagnostic techniques, and repair procedures. Additionally, engineers can use oscilloscopes, logic analyzers, and other diagnostic tools to identify and resolve issues.
  • Yes, the VNQ83013TR is sensitive to electromagnetic interference (EMI) and radio-frequency interference (RFI). Engineers should follow proper PCB design and layout guidelines, use shielding, and implement filtering and decoupling techniques to minimize EMI and RFI effects.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VNQ83013TR Overview

Use the download button to access the VNQ83013TR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like VNQ83, or try a keyword search, such as Peripheral Drivers
