VNS1NV0413TR - STMicroelectronics

Description: Omnifet II fully autoprotected Power MOSFET SO-8

Download VNS1NV0413TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

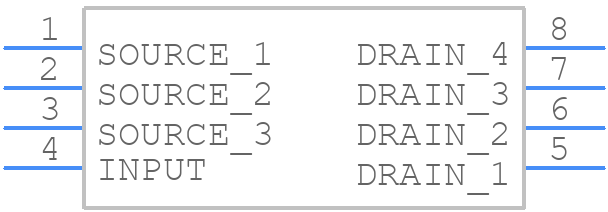

Symbol
VNS1NV0413TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VNS1NV0413TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO8 (150 mil width)
click to zoom

VNS1NV0413TR Details

  • Manufacturer Part Number:

    VNS1NV0413TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    1.7 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    9.5 µs

  • Turn-on Time:

    5 µs

  • Width:

    3.9 mm

VNS1NV0413TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2663, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value between 1uF to 10uF. The datasheet provides more detailed guidance on capacitor selection.
  • The VNS1NV0413TR has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
  • STMicroelectronics provides a troubleshooting guide in the application note AN2663, which covers common issues and their solutions. Additionally, engineers can use oscilloscopes and thermal imaging cameras to diagnose and debug issues with the VNS1NV0413TR.
  • Yes, the VNS1NV0413TR is suitable for high-reliability and automotive applications due to its AEC-Q100 qualification and compliance with various automotive standards. However, engineers should ensure that the device meets the specific requirements of their application and follow the recommended design guidelines.
