VNV35NV04 footprint, schematic symbol and 3D model by STMicroelectronics

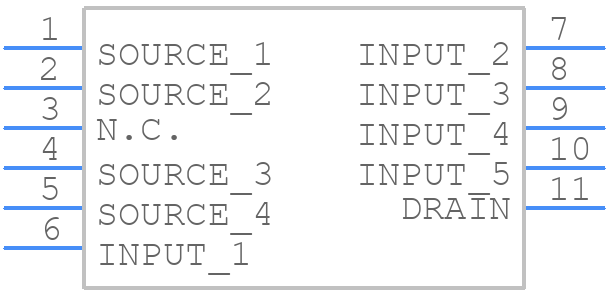

Symbol

click to zoom

PCB Footprints

VNV35NV04 - STMicroelectronics PCB footprint - Other - Other - PowerSO-10__0011

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VNV35NV04
Part Number VNV35NV04
Manufacturer STMicroelectronics
Pin Count 11
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - PowerSO-10__0011
Released Date Apr 24, 2026
Last Modified Date Apr 24, 2026 8:16 AM UTC
Pinout / Pin List Click Here (Member Only)

VNV35NV04 Details

Manufacturer Part Number:
VNV35NV04
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
SOIC
Package Description:
ROHS COMPLIANT, SO-10
Pin Count:
10
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
0
Built-in Protections:
TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G10
JESD-609 Code:
e3
Length:
9.4 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
10
Output Current Flow Direction:
SINK
Output Peak Current Limit-Nom:
45 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG
Peak Reflow Temperature (Cel):
250
Qualification Status:
Not Qualified
Seated Height-Max:
3.75 mm
Surface Mount:
YES
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
150 µs
Turn-on Time:
12 µs
Width:
7.5 mm
