VNV35NV0413TR footprint, schematic symbol and 3D model by STMicroelectronics

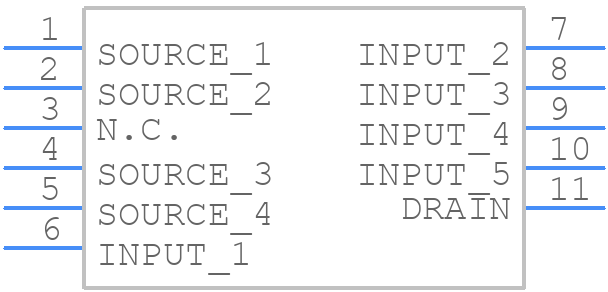

Symbol

click to zoom

PCB Footprints

VNV35NV0413TR - STMicroelectronics PCB footprint - Other - Other - PowerSO-10_2026-9.5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VNV35NV0413TR
Part Number VNV35NV0413TR
Manufacturer STMicroelectronics
Pin Count 11
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - PowerSO-10_2026-9.5
Released Date Apr 26, 2026
Last Modified Date Apr 26, 2026 5:53 AM UTC
Pinout / Pin List Click Here (Member Only)

VNV35NV0413TR Details

Manufacturer Part Number:
VNV35NV0413TR
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
SOIC
Package Description:
ROHS COMPLIANT, SO-10
Pin Count:
10
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
0
Built-in Protections:
TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G10
JESD-609 Code:
e3
Length:
9.4 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
10
Output Current Flow Direction:
SINK
Output Peak Current Limit-Nom:
45 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG
Peak Reflow Temperature (Cel):
250
Qualification Status:
Not Qualified
Seated Height-Max:
3.75 mm
Surface Mount:
YES
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
150 µs
Turn-on Time:
12 µs
Width:
7.5 mm

VNV35NV0413TR Frequently Asked Questions (FAQs)

STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for thermal management, decoupling, and layout considerations to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor values depend on the input voltage, output voltage, and switching frequency. A general guideline is to use a capacitor with a value between 10uF to 22uF, with a voltage rating of at least 1.5 times the input voltage. Refer to the application note AN4979 for more detailed guidance.
The enable pin (EN) has a maximum allowed voltage of 6V, which is higher than the recommended operating voltage of 5V. However, it's essential to ensure that the voltage on the EN pin does not exceed 6V to prevent damage to the device.
The VNV35NV0413TR has an internal overcurrent protection feature that limits the output current to 3.5A. To implement additional overcurrent protection, you can use an external current sense resistor and a comparator to detect overcurrent conditions and shut down the device if necessary.
The thermal resistance of the VNV35NV0413TR package (PowerSSO-24) is typically around 20°C/W (junction-to-ambient) and 4°C/W (junction-to-case). This information is essential for thermal management and heat sink design.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

VNV35NV0413TR Overview

Use the download button to access the VNV35NV0413TR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like VNV35, or try a keyword search, such as Peripheral Drivers
