The recommended storage condition for VO2223A-X007T is in a dry, cool place, away from direct sunlight, and in its original packaging or anti-static bag to prevent electrostatic discharge damage.
While VO2223A-X007T has a high operating temperature range, it's essential to consider the derating curves and thermal management to ensure reliable operation. Consult the datasheet and application notes for guidance.
Follow standard handling and soldering procedures for optocouplers, including using an anti-static wrist strap, soldering iron with a temperature-controlled tip, and avoiding excessive heat or mechanical stress.
Follow standard PCB layout guidelines for optocouplers, including keeping the component away from high-voltage traces, using a ground plane, and maintaining a minimum creepage distance of 1.5 mm between the input and output pins.
VO2223A-X007T is a commercial-grade component. For high-reliability or safety-critical applications, consider using a component with a higher qualification level, such as automotive or industrial grade, and consult with a Vishay Intertechnologies representative.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VO2223A-X007T Overview

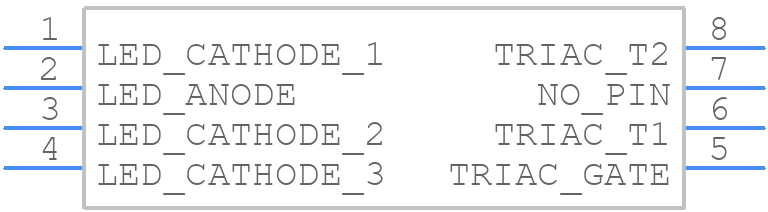

Use the download button to access the VO2223A-X007T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VO222,
or try a keyword search, such as Optocoupler
