VO2223B - Vishay

Description: Triac & SCR Output Optocouplers 1A, 600V PhotoTRIAC DIP-8; UL, cUL

Download VO2223B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

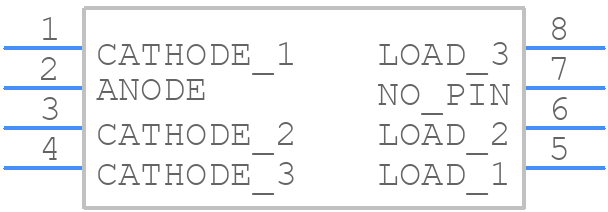

Symbol
VO2223B - Vishay - PCB symbol
click to zoom
PCB Footprints
VO2223B - Vishay PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 90136-1206
click to zoom
3D Models
VO2223B - Vishay - 3D model - Dual-In-Line Packages - 90136-1206
click to zoom

VO2223B Details

  • Manufacturer Part Number:

    VO2223B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8/7

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.05 A

  • Input Trigger Current-Max:

    0.01 A

  • Isolation Voltage-Max:

    4470 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    1 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Peak Off-state Voltage-Min:

    600 V

  • Peak Surge Current:

    10 A

  • Repetitive Peak Off-state Voltage:

    600 V

  • Reverse Leakage Current-Max:

    0.00001 A

  • Surface Mount:

    NO

VO2223B Frequently Asked Questions (FAQs)

  • A good PCB layout for VO2223B involves keeping the input and output traces separate, using a ground plane, and minimizing the distance between the photodiode and the amplifier. A 4-layer PCB with a dedicated ground plane is recommended.
  • The VO2223B requires a bias voltage of 5V to 15V. Ensure the bias voltage is stable and within the recommended range. A decoupling capacitor (e.g., 10uF) between the bias pin and ground is recommended to reduce noise.
  • The VO2223B is rated for operation up to 85°C ambient temperature. However, it's recommended to derate the device for temperatures above 70°C to ensure reliable operation.
  • The VO2223B is an ESD-sensitive device. Handle it with ESD-protective equipment, and ensure the PCB design includes ESD protection components (e.g., TVS diodes) to prevent damage.
  • The recommended soldering profile for VO2223B is a peak temperature of 260°C for 10 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s. Ensure the soldering process is within these parameters to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VO2223B Overview

Use the download button to access the VO2223B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VO222, or try a keyword search, such as Optocoupler
