The recommended PCB footprint for VO2630-X009T is a rectangle with dimensions 1.6 mm x 0.8 mm, with a 0.5 mm radius corner. The pad spacing should be 0.5 mm, and the pad size should be 0.8 mm x 0.8 mm.
To handle thermal management, ensure good thermal conductivity between the device and the PCB by using a thermal pad or a thermal via. Keep the ambient temperature below 85°C, and avoid overheating the device during soldering or rework.
The maximum allowable voltage for VO2630-X009T is 30 V, but it's recommended to operate the device within the specified voltage range of 10 V to 20 V for optimal performance and reliability.
Yes, VO2630-X009T is suitable for high-frequency applications up to 100 MHz. However, ensure proper PCB layout and decoupling to minimize parasitic inductance and capacitance.
To ensure reliability in a humid environment, follow proper storage and handling procedures, and consider applying a conformal coating to the PCB. Ensure the device is operated within the specified temperature and humidity ranges.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VO2630-X009T Overview

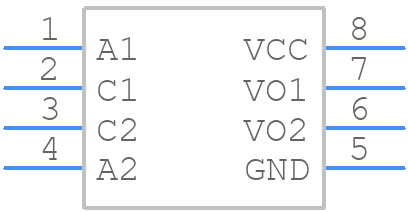

Use the download button to access the VO2630-X009T schematic symbol and PCB footprint.
