VO3120-X001 - Vishay

Description: Logic Output Optocouplers IGBT MOSFET Driver 2.5A

Download VO3120-X001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

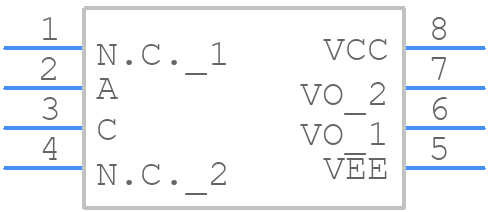

Symbol
VO3120-X001 - Vishay - PCB symbol
click to zoom
PCB Footprints
VO3120-X001 - Vishay PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-8_1
click to zoom
3D Models
VO3120-X001 - Vishay - 3D model - Dual-In-Line Packages - DIP-8_1
click to zoom

VO3120-X001 Details

  • Manufacturer Part Number:

    VO3120-X001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5.2

  • High Side Driver:

    NO

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    9.77 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.7 mm

  • Supply Voltage-Max:

    32 V

  • Supply Voltage-Min:

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.4 µs

  • Turn-on Time:

    0.4 µs

  • Width:

    7.62 mm

VO3120-X001 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for VO3120-X001 is -40°C to 125°C, as per Vishay's standard storage conditions.
  • Yes, VO3120-X001 is suitable for high-frequency applications up to 100 kHz. However, it's essential to consider the device's parasitic capacitance and inductance when designing high-frequency circuits.
  • VO3120-X001 has an internal ESD protection diode, but it's still recommended to follow standard ESD handling procedures, such as using an ESD wrist strap or mat, to prevent damage during handling and assembly.
  • The maximum allowable voltage for VO3120-X001 is 120% of the rated voltage (30V) for a maximum of 1000 hours, as per Vishay's reliability testing standards.
  • Yes, VO3120-X001 is AEC-Q101 qualified, making it suitable for automotive applications. However, it's essential to ensure that the device meets the specific requirements of your application, including temperature, voltage, and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VO3120-X001 Overview

Use the download button to access the VO3120-X001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VO312, or try a keyword search, such as MOSFET Drivers
